Semi-Automatic Four-Side Vacuum Suction Labeling Machine for Portable Power Banks Battery

Customized Semi-Automatic Labeling Solution

A customer required a customized labeling machine for portable power banks. The product needed labels applied to four side surfaces and the top surface, while the customer preferred a semi-automatic solution rather than a fully automatic production line.

Based on the product structure and labeling requirements, Shiny Labeling developed a customized semi-automatic four-side vacuum suction labeling machine.

The operator manually places one portable power bank into the machine. After the product is positioned, the machine automatically performs the required labeling operations on the four sides and top surface. The operator then removes the finished product and loads the next one.

Customer’s Labeling Requirements

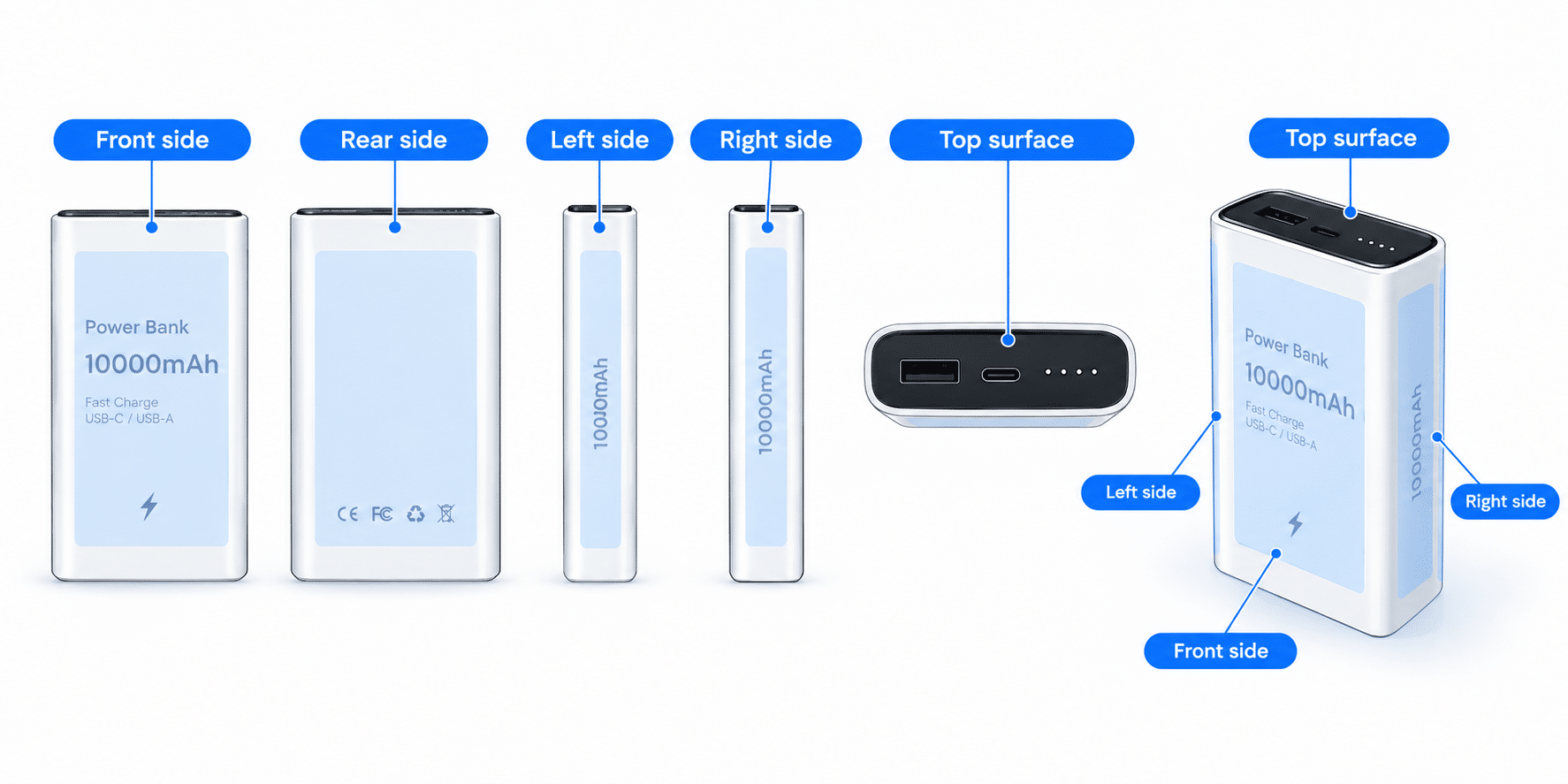

The portable power bank required labels on five surfaces:

• Front side
• Rear side
• Left side
• Right side
• Top surface

The customer required consistent label positioning on each surface while keeping the machine operation simple and suitable for small-batch or flexible production.

Instead of using a fully automatic feeding and conveying system, the customer chose manual product loading with automatic labeling.

How the Semi-Automatic Machine Works

The operating process is straightforward:

1. Manual Loading
The operator places one portable power bank into the customized positioning fixture.

2. Product Positioning
The product is accurately positioned and held in place using the customized vacuum suction system.

3. Automatic Labeling
After the operator starts the cycle, the machine automatically applies labels to the required four side surfaces and the top surface.

4. Labeling Completion
The machine completes the programmed labeling sequence and returns to the loading position.

5. Manual Unloading
The operator removes the finished power bank and places the next product into the fixture.

This cycle is then repeated.

Vacuum Suction Positioning

Because the portable power bank is relatively compact and lightweight, stable product positioning is important when applying labels to multiple surfaces.

The customized vacuum suction fixture helps hold the product securely during the labeling process. This reduces product movement and helps maintain consistent positioning between the product and each labeling head.

The vacuum fixture was customized according to the actual dimensions and surface characteristics of the customer’s power bank.

Customized Five-Surface Labeling

The machine was designed specifically around the customer’s labeling layout.

Rather than simply applying one label to one surface, the customized system coordinates multiple labeling operations to cover:

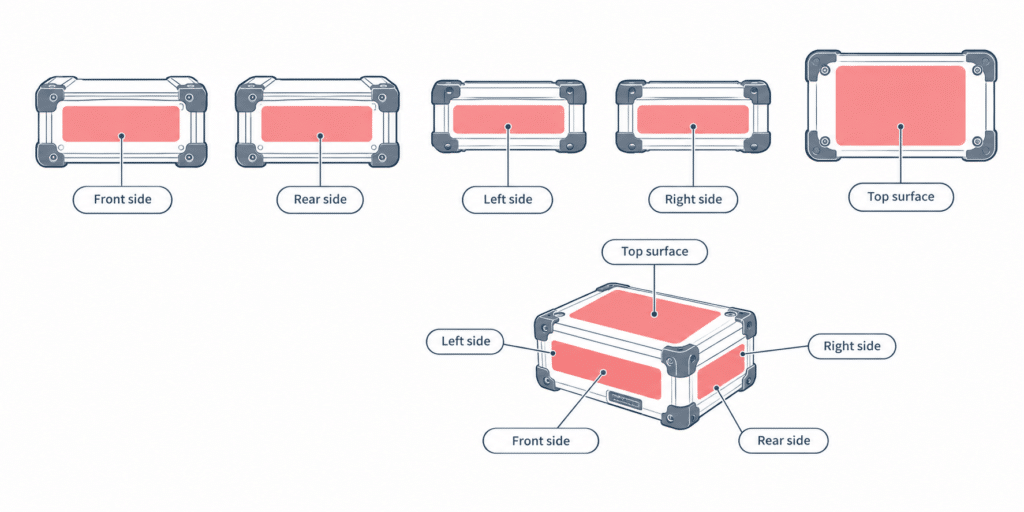

Four Side Surfaces + One Top Surface

The labeling sequence, labeling head positions, vacuum fixture, and product handling mechanism can all be adjusted according to the customer’s product dimensions and label specifications.

Why Choose a Semi-Automatic Solution?

For this project, the customer did not require a fully automatic feeding system.

Manual loading provides a simpler solution while the machine automatically handles the more precise and repetitive labeling operations.

A semi-automatic configuration can be suitable when:

• Products are loaded manually in small batches
• Multiple product models need to be handled
• Product shapes require customized positioning
• Production volume does not justify a fully automatic feeding system
• The customer wants a more compact machine
• Operators are already available for product loading and unloading

Customized Machine for Portable Power Banks

The machine was not a standard off-the-shelf labeling machine. The positioning fixture and labeling mechanism were customized according to the customer’s actual product.

Possible customization points include:

• Vacuum suction fixture
• Product positioning mechanism
• Labeling head positions
• Labeling sequence
• Product dimensions
• Label dimensions
• Labeling speed
• Sensor configuration
• HMI control settings
• Safety protection

Before machine production, the product samples and labels can be tested to determine the appropriate labeling method and positioning structure.

Application

This semi-automatic labeling solution can be used for portable power banks, mobile battery banks, rechargeable battery packs, electronic devices, and other compact rectangular products requiring multi-surface labeling.

For different product sizes or label layouts, the machine can be customized according to the actual samples.

Customized Labeling Equipment by Shiny Labeling

This project demonstrates how a labeling machine can be customized around a specific product and labeling requirement.

For this portable power bank application, the final solution combines manual product loading, vacuum suction positioning, and automatic five-surface labeling in one semi-automatic system.

If your product requires labeling on multiple surfaces, send us your product dimensions, label drawings, product samples, and required output. Shiny Labeling can develop a customized labeling solution based on your application.

FAQ – Semi-Automatic Power Bank Labeling Machine

What Is the Labeling Accuracy?

The labeling accuracy is approximately ±1 mm, depending on the product, label, and application conditions.

Will the Labels Wrinkle or Have Bubbles?

The final labeling result depends on the label material, adhesive, product surface, and other application conditions. We recommend testing actual product samples and labels to confirm the final labeling effect.

What Product Dimensions Can It Handle?

The machine is customized according to the product dimensions and labeling requirements.

How Long Does Customization Take?

The typical customization lead time is approximately 15–20 days, depending on the machine configuration and testing requirements.

Can I Test My Products Before Ordering?

Yes. Product testing is welcome. We recommend sending your products and labels for testing so our engineers can verify the labeling method and final application effect before production.
