Automatic Bag Labeling Machine
Customized Auto Leafleting Bag Labeling Machine Manufacturer in China
The bag labeling machine is an automatic labeling system designed to apply pressure-sensitive (self-adhesive) labels precisely onto flat, thin products and flexible packaging such as pouches, plastic bags, and cartons. It is widely used in industries like food, cosmetics, and daily consumer goods.
High Speed & Precision Labeling
Ensures accurate label placement with consistent performance.
Customizable Device
Adaptable to different bag sizes, shapes, and label specifications.
Durable & Reliable Structure
Built with high-quality components for long-term industrial use.
Panasonic PLC Controlled/ Bier Servor Motor Driven
Highly Precise Label Applicator Machine for Bags
Label Sensor
Label sensor of an automatic labeling machine, designed to detect labels accurately and ensure consistent label dispensing and precise label positioning during the labeling process.
Product Sensor
Product sensor of an automatic labeling machine, designed to detect products accurately and coordinate label dispensing for consistent labeling.
HMI with Emergency Stop
Provide user-friendly interface for Controls settings, monitors performance, and diagnoses issues
Label Liner Rewinding & Traction System
Return and traction system of an automatic bag feeding and separation labeling system, designed to provide stable bag conveying and controlled traction during the labeling process.
Servo Motor
Provide precise label feeding & positioning, and high Speed & rapid response
Pressing Device
Pressing device of an automatic bag feeding and separation labeling system, designed to hold bags securely and apply consistent pressure during labeling for smooth and accurate label application.
Leafleting Machine
Auto feeder of an automatic bag feeding and separation labeling system, designed to separate and feed bags individually into the labeling machine for stable and continuous labeling.
Auto Feeder
Auto feeder of an automatic bag feeding and separation labeling system, designed to separate and feed bags individually into the labeling machine for stable and continuous labeling.
Electric Cabinet
Electrical cabinet of an automatic bag feeding and separation labeling system, housing the control and electrical components for stable automatic feeding, bag separation, and precise labeling.
Adjustment Mechanism
The height, position and Angle can be precisely adjusted to ensure accurate marking of products of various sizes and shapes.
Product Parameters for Automatic Bag Label Machine
| Parameter | Specification |
|---|---|
| Model | SL7802 |
| Labeling Accuracy | ±1 mm |
| Labeling Speed | 40–150 pcs/min, Customizable |
| Applicable Product Size | L: 40–280 / W: 70–200 / H: 0.1–2 mm, Customizable |
| Applicable Label Size | L: 6–190 / W: 6–160 mm, Customizable |
| Label Type | Self-Adhesive Pressure-Sensitive Labels |
| Label Roll Inner Diameter | Ø76 mm |
| Max. Label Roll Outer Diameter | Ø300 mm |
| Conveyor Height | 750 ± 50 mm |
| Power Supply | AC 220/230V, 50Hz, 1 Phase |
| Power Consumption | 1.2 kW |
| Air Supply | 0.5–0.6 MPa |
| Machine Dimensions (L×W×H) | 2300 × 730 × 1500 mm, Support customized based on customer's request |
| Machine Weight | 220 kg |
| Machine Materials | SUS304 Stainless Steel / Aluminum Profiles，Support customized in other SUS304 / SS316 / SUS316 Stainless Steel |
| Certificates | CE, ISO 9001 |
| Workflow | Bags Feeding → Product Detection → Bags Positioning → Label Dispensing → Label Application → Label Pressing → Collect Product |
Label Specifications & Requirements for Automatic Bag Label Machine
| Parameter | Specification |
|---|---|
| Label Supply | Roll-fed |
| Label Gap | 2–3 mm ±0.2 mm |
| Recommended Release Liner | Glassine Paper |
| Release Liner Requirement | The release liner should be free from cuts, scoring, or other damage to ensure smooth label dispensing and reliable labeling operation. |
Case Video of Automated Bag Labeling Machine

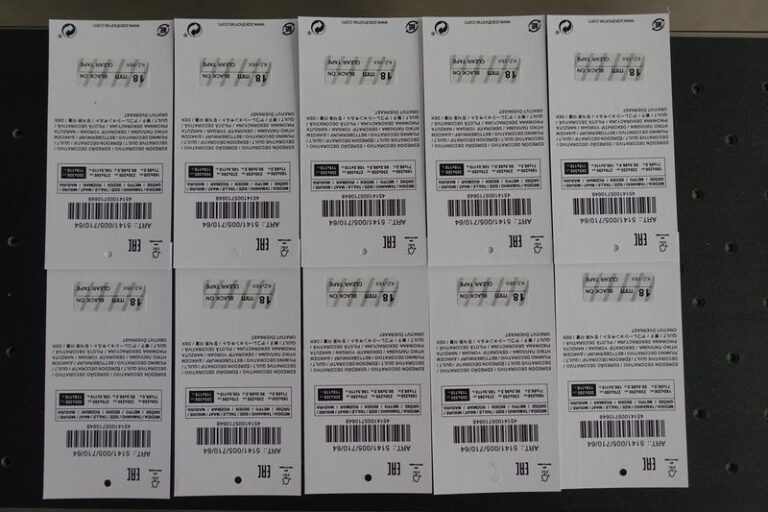

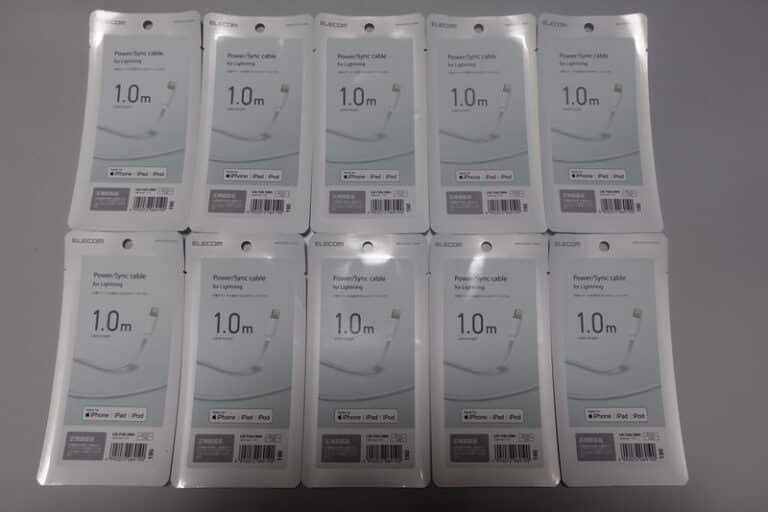

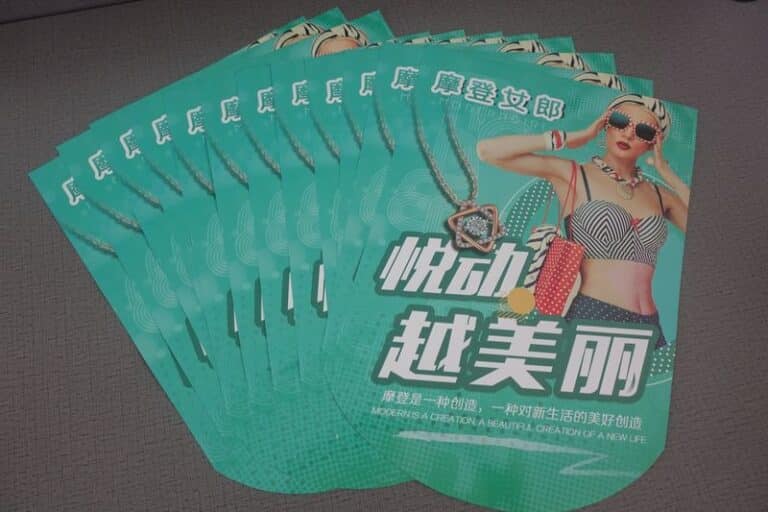

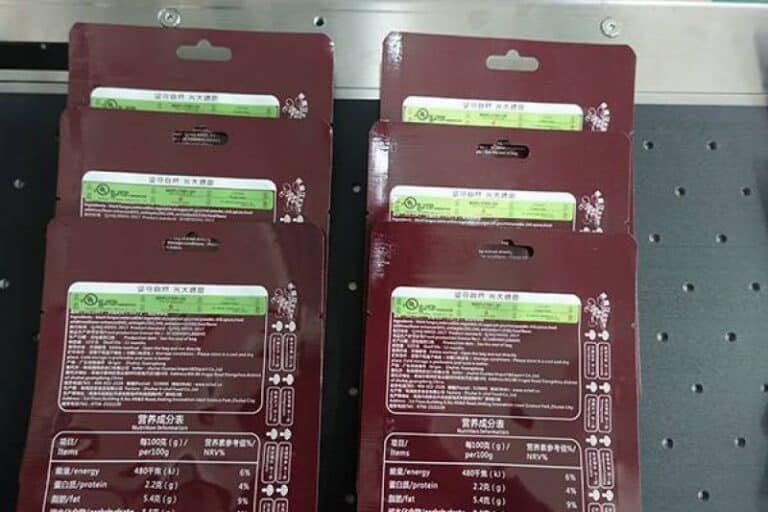

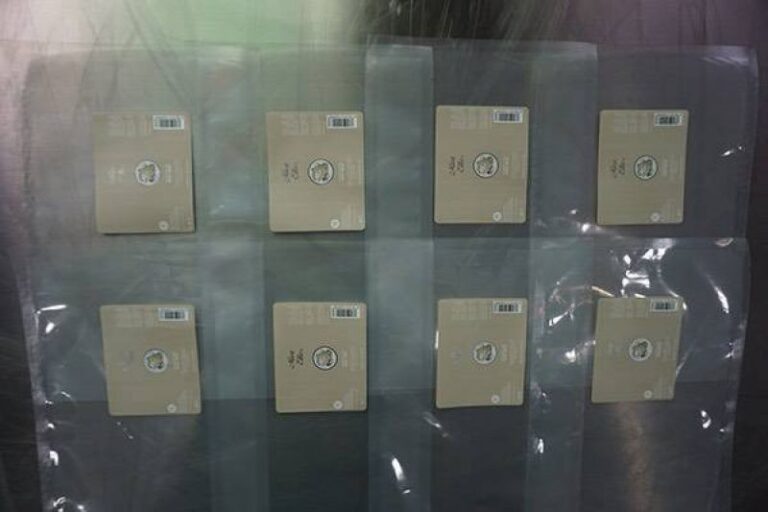

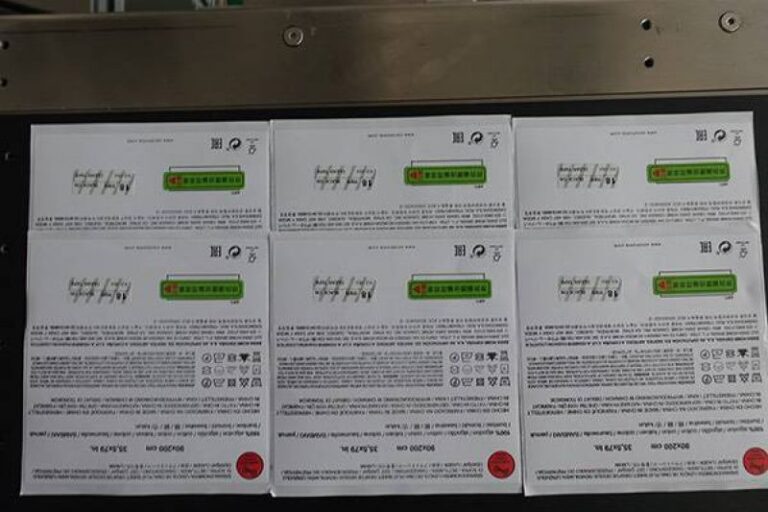

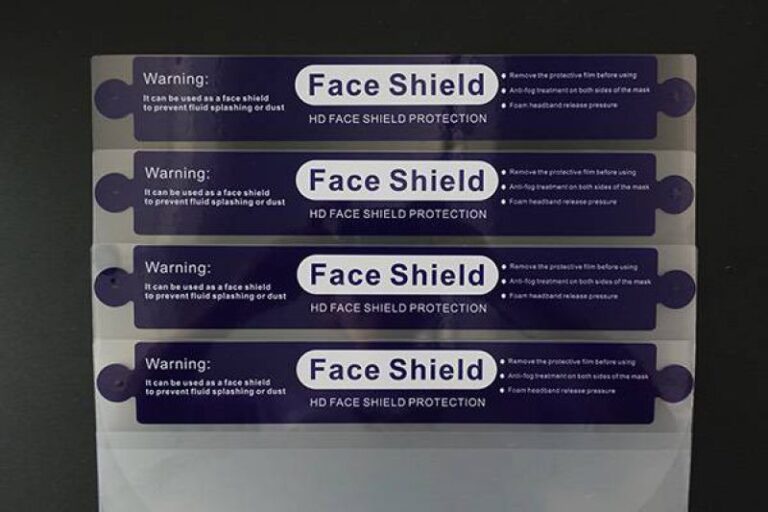

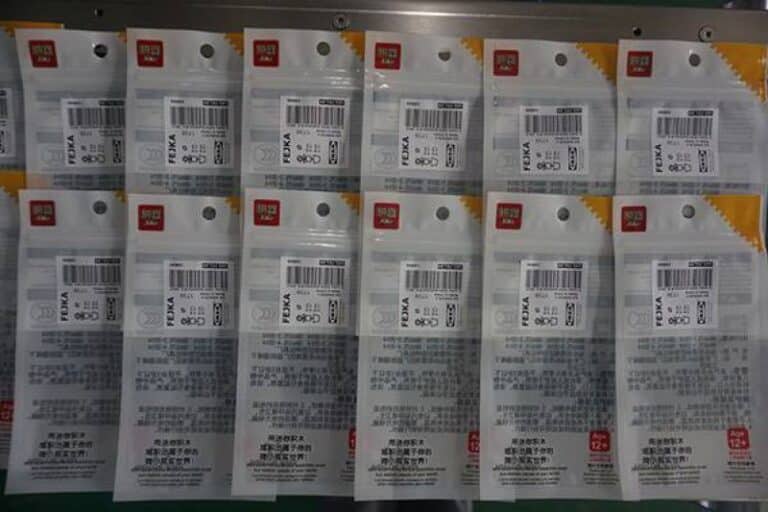

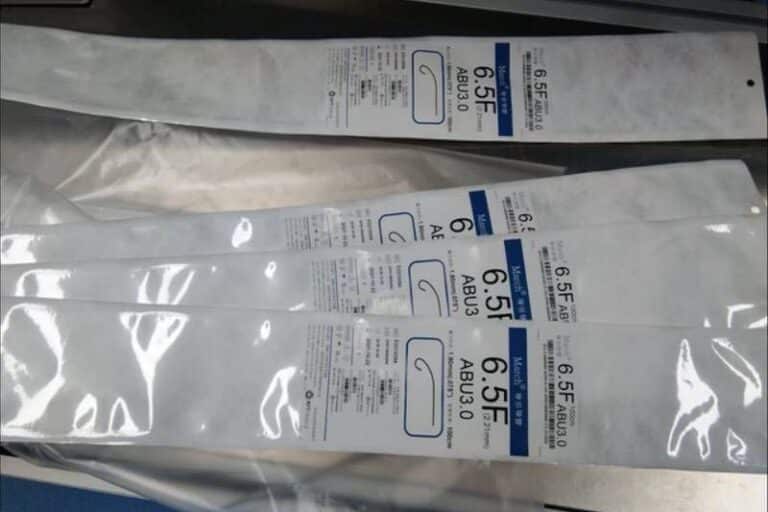

Application Scenarios for Automatic Pouch Bag Labeller

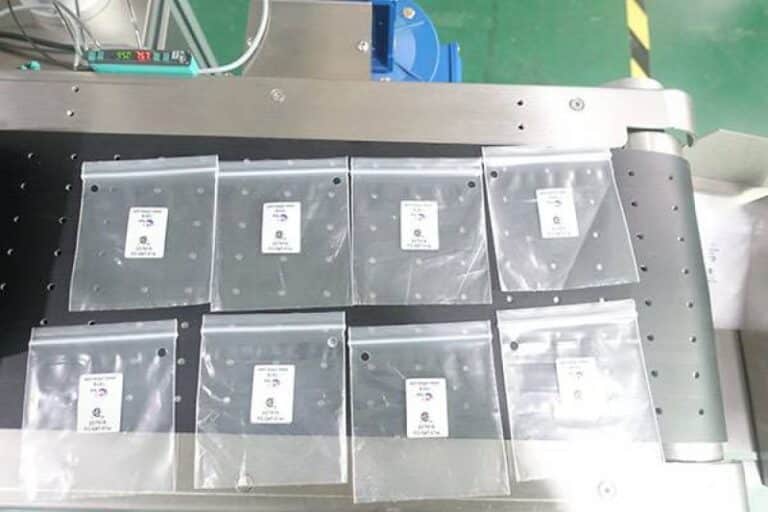

Auto Labeling Machine for Bags
Ready for Overseas Shipment
Frequently Asked Questions (FAQs)
Q1: What types of labels are supported?
Our machine supports all standard self-adhesive labels in roll form, including paper labels, PET, BOPP, and other film materials.
Q2: Can it handle transparent labels?
Yes, the machine can handle transparent labels. We use a high-sensitivity label sensor specifically designed for transparent or clear labels to ensure accurate detection and positioning.
Q3: What is the max label roll size?
The standard configuration supports a maximum roll outer diameter of 280 mm, with a core diameter of 76 mm (3 inch).
Q4: Does it support different adhesives?
Yes, the machine is compatible with various adhesive types, including permanent, removable, and high-tack adhesives, as long as they are standard self-adhesive labels.
Q5: Can the machine be customized according to our label specifications?
Yes, we can customize the machine according to your label size, material, and application requirements.
Q6: Do you also offer customized adhesive labels?
Yes, we can provide customized labels based on your size, material, and application requirements.
Q7: What kind of products can this machine label?
This machine is designed for flat products such as cards, paper sheets, PE bags, pouches, flattened cartons, garment bags, advertising pages, and magazine covers. It uses a paging feeding system to separate and feed products automatically without damaging the surface.
Q8: What is the applicable product size range?
A: Below is standard machine
- Length: 40–280 mm
- Width: 70–200 mm
- Thickness: 0.2–2 mm
Q9: What label sizes are supported?
A: Below is standard machine
- Label Length: 6–190 mm
- Label Width: 6–160 mm
Q10: What is the labeling accuracy of the machine?
A:
The labeling accuracy is ±1 mm, ensuring precise and consistent label placement.
Q11: What type of feeding system is used?
A:
This machine is equipped with a paging feeder system, which automatically separates stacked products and feeds them one by one for labeling.
