Automatic Vial Labeling Machine
Customized Auto Vial Labeling Machine Manufacturers
The Automatic Vial Labeling Machine is designed for precise and efficient labeling of cylindrical vials used in pharmaceutical, medical, laboratory, and healthcare applications. The machine automatically feeds, positions, and applies self-adhesive labels to vials with consistent positioning and reliable labeling performance.
Panasonic PLC Controlled/ Bier Servor Motor Driven
Automatic Vial Labeller Machine With Feeder

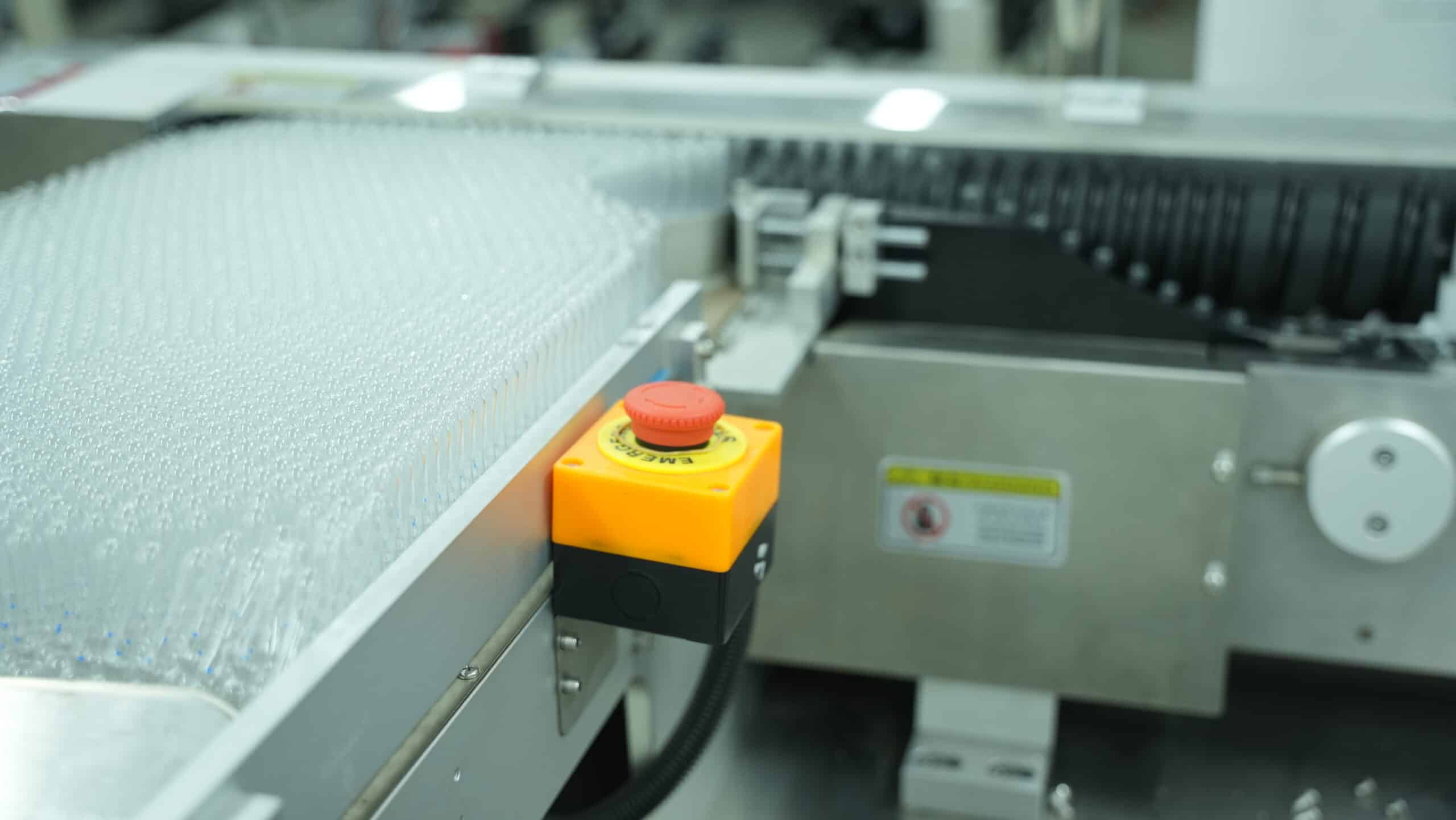

Material Feeder
Material feeder of an automatic vial labeler machine, designed to feed vials smoothly and consistently into the labeling system for stable and continuous operation.

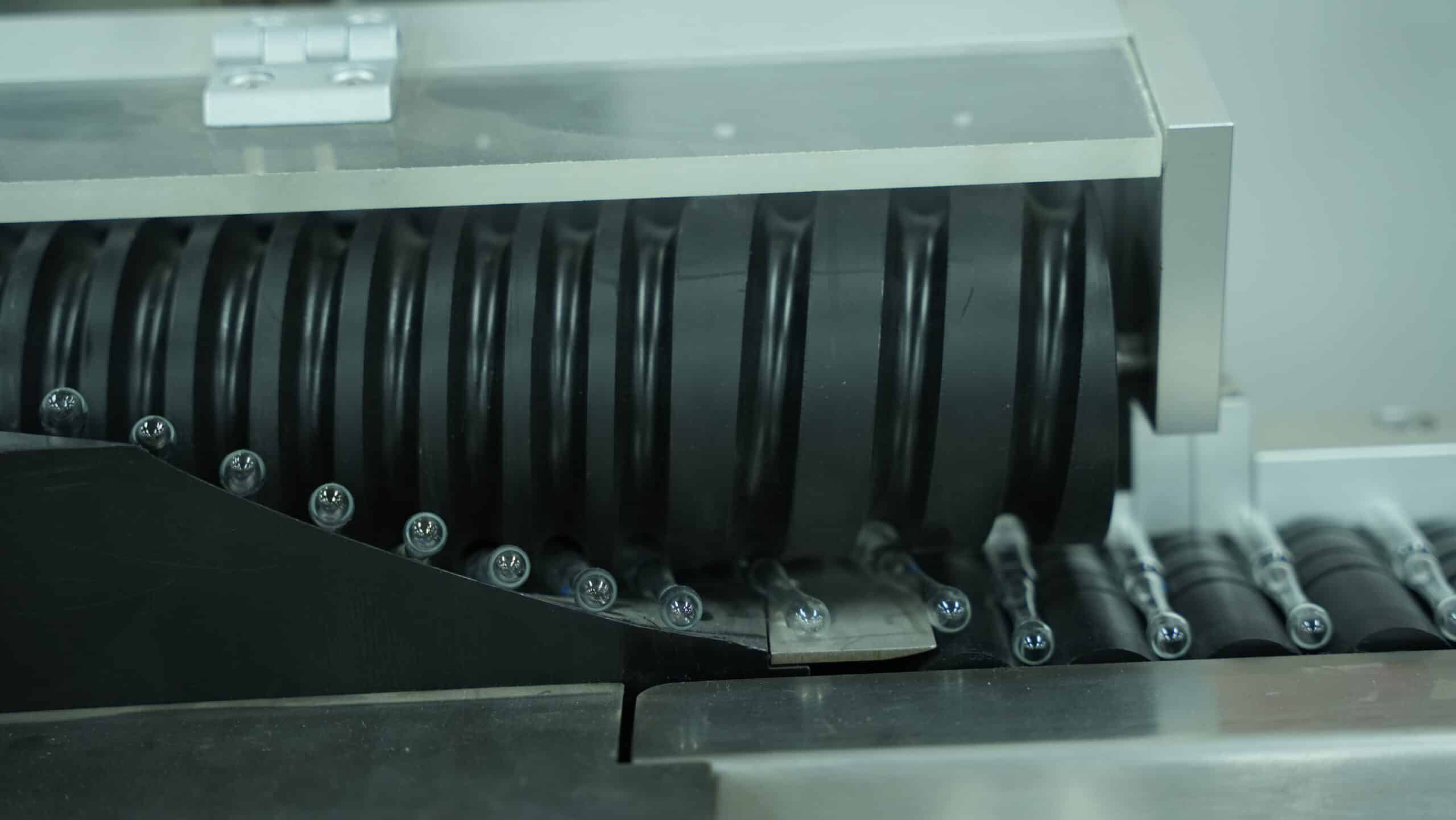

Material Conveyor
Material conveyor of an automatic vial labeler machine, designed to transport vials smoothly and maintain stable product positioning throughout the labeling process.

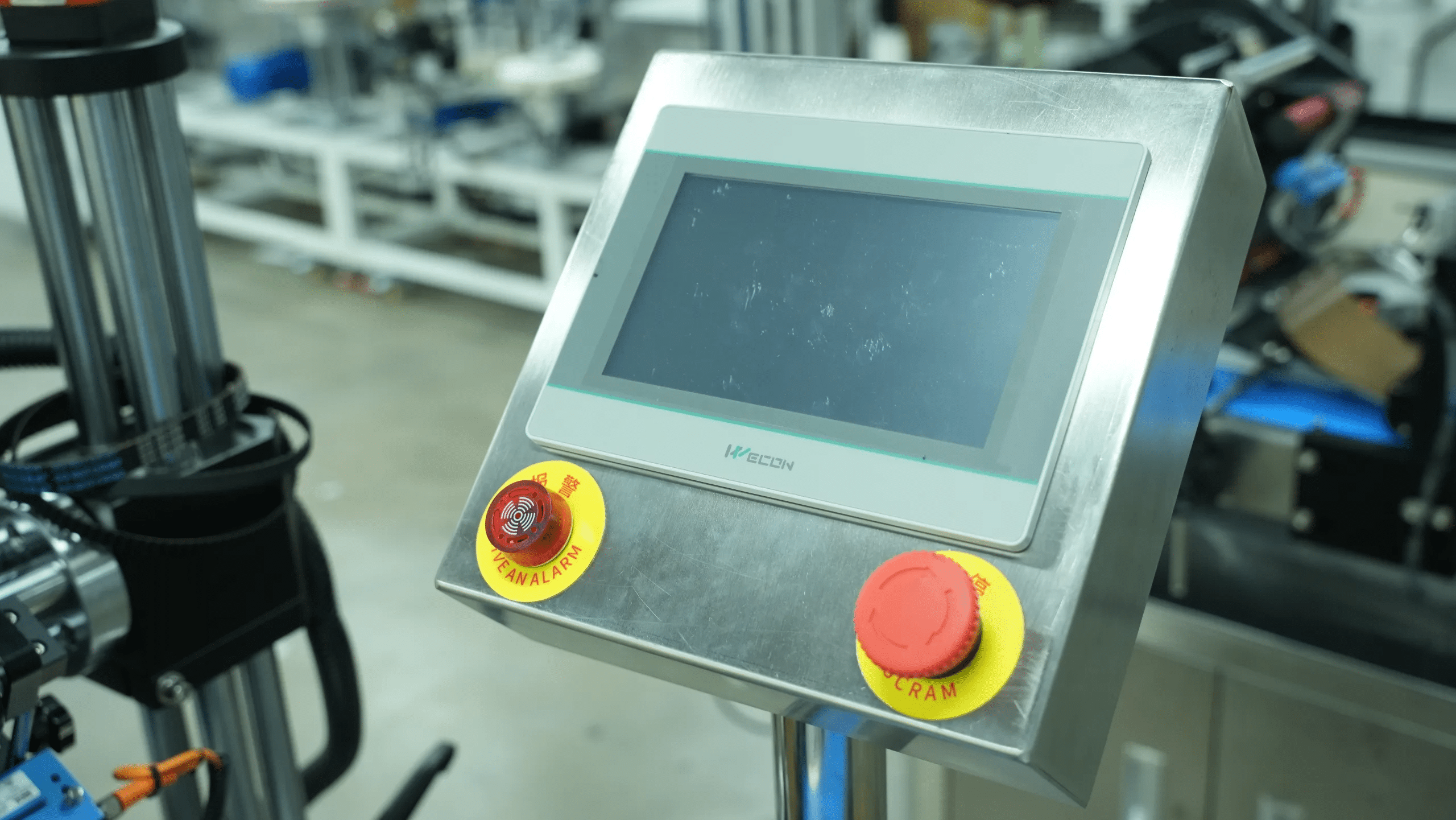

HMI with Emergency Stop
HMI control panel of an automatic vial labeler machine, featuring an emergency stop button for convenient machine operation and safety control.

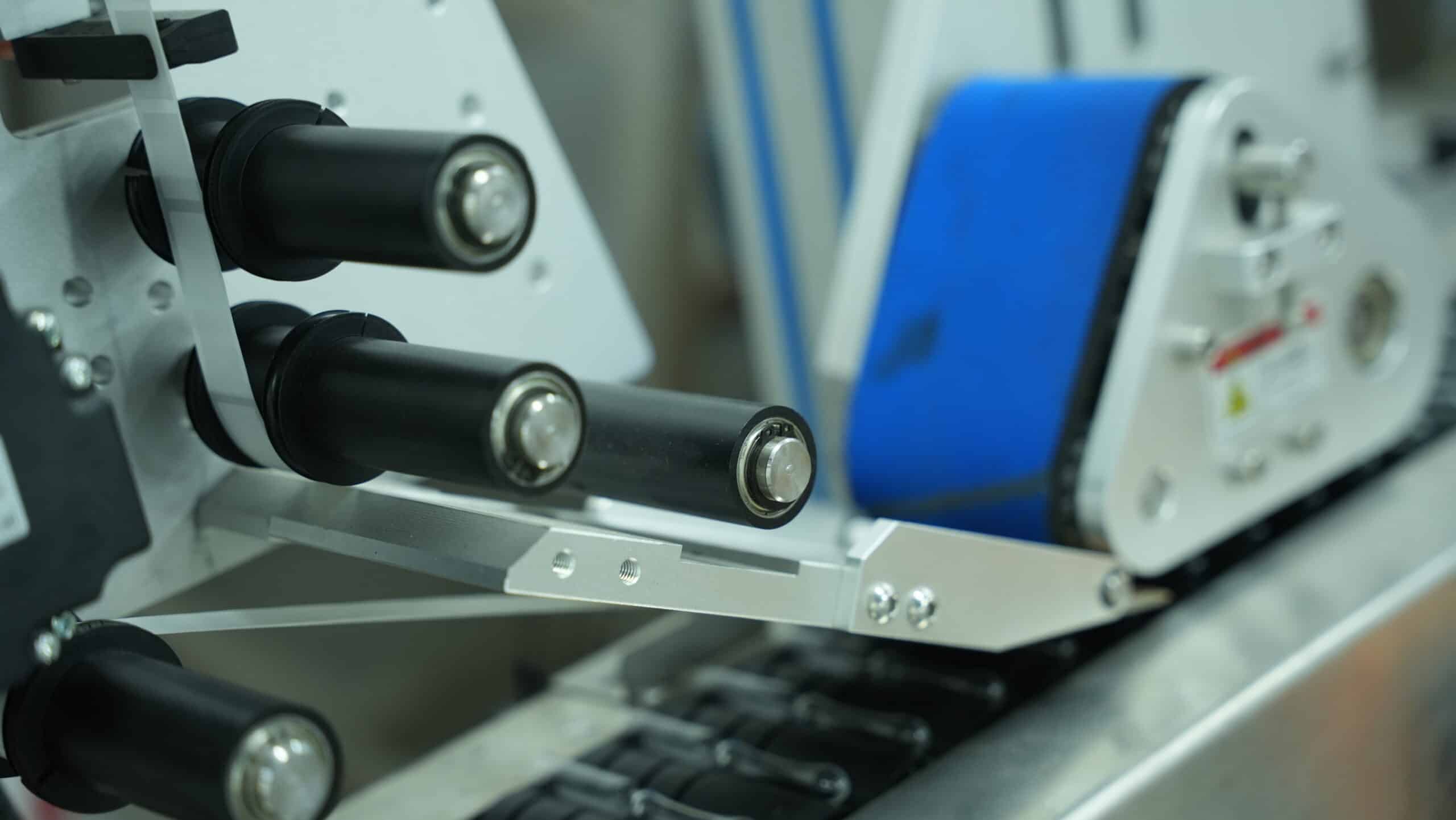

Applicator Head
Applicator head of an automatic vial labeler machine, designed to apply labels accurately and smoothly onto vials for consistent labeling performance.

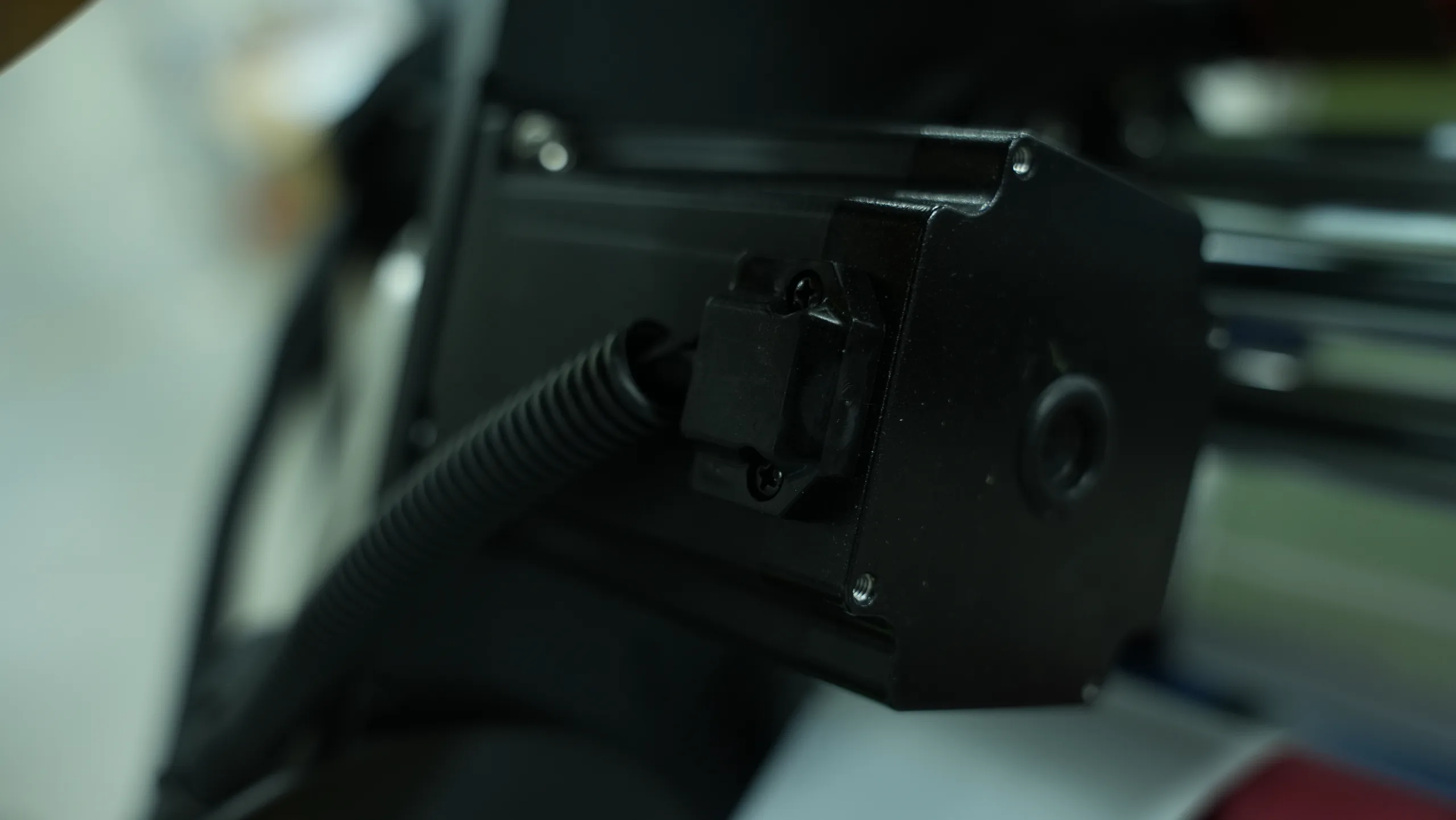

Servo Motor
Servo motor of an automatic vial labeler machine, providing precise and stable motion for accurate label positioning and consistent vial labeling.

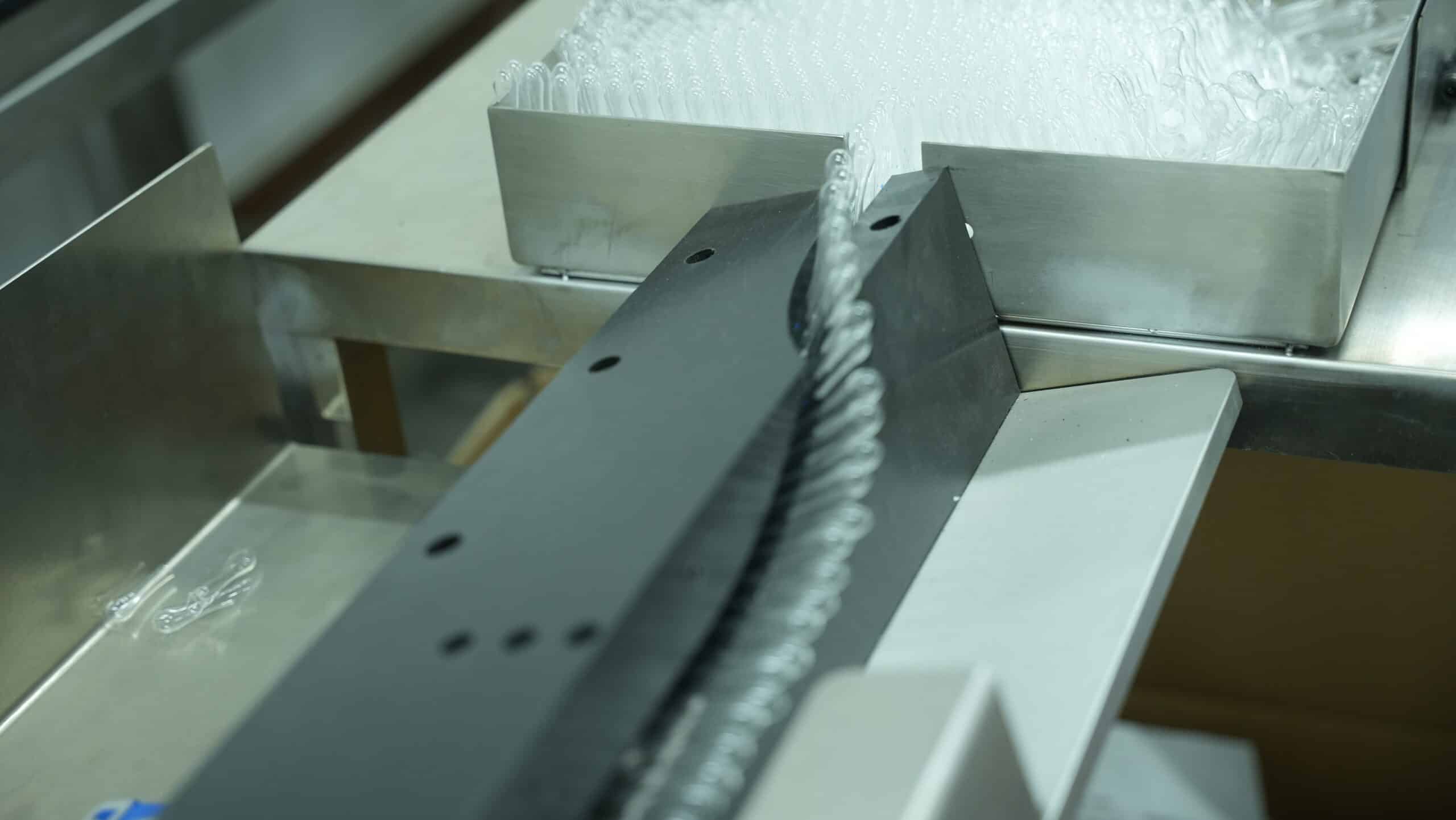

Product Collection Tray
Product collection tray of an automatic vial labeler machine, designed to collect labeled vials smoothly after the labeling process and support continuous production.

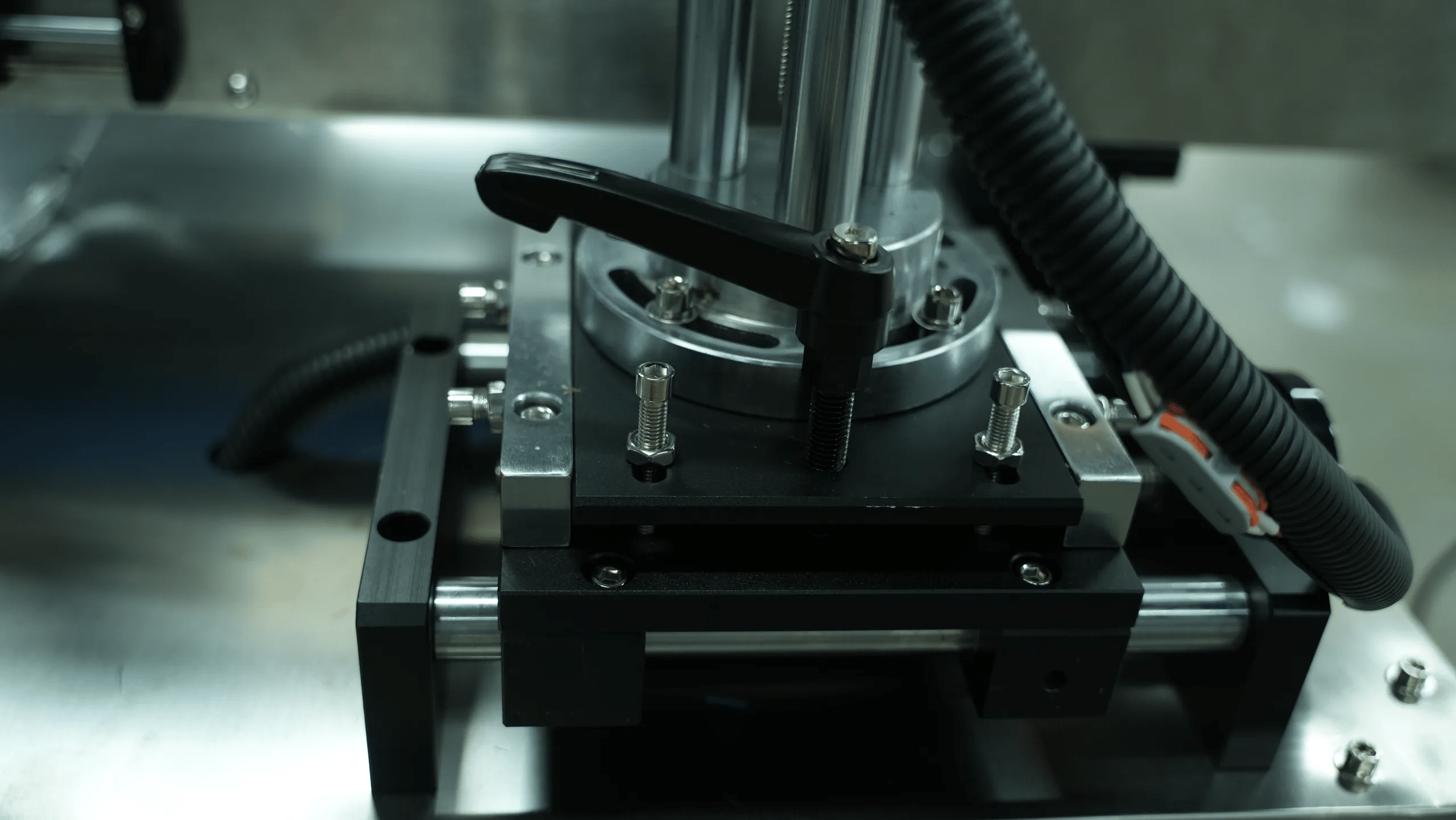

Adjustment Mechanism
Adjustment mechanism of an automatic vial labeler machine, designed to accommodate different vial sizes and maintain stable product positioning for accurate and consistent label application.

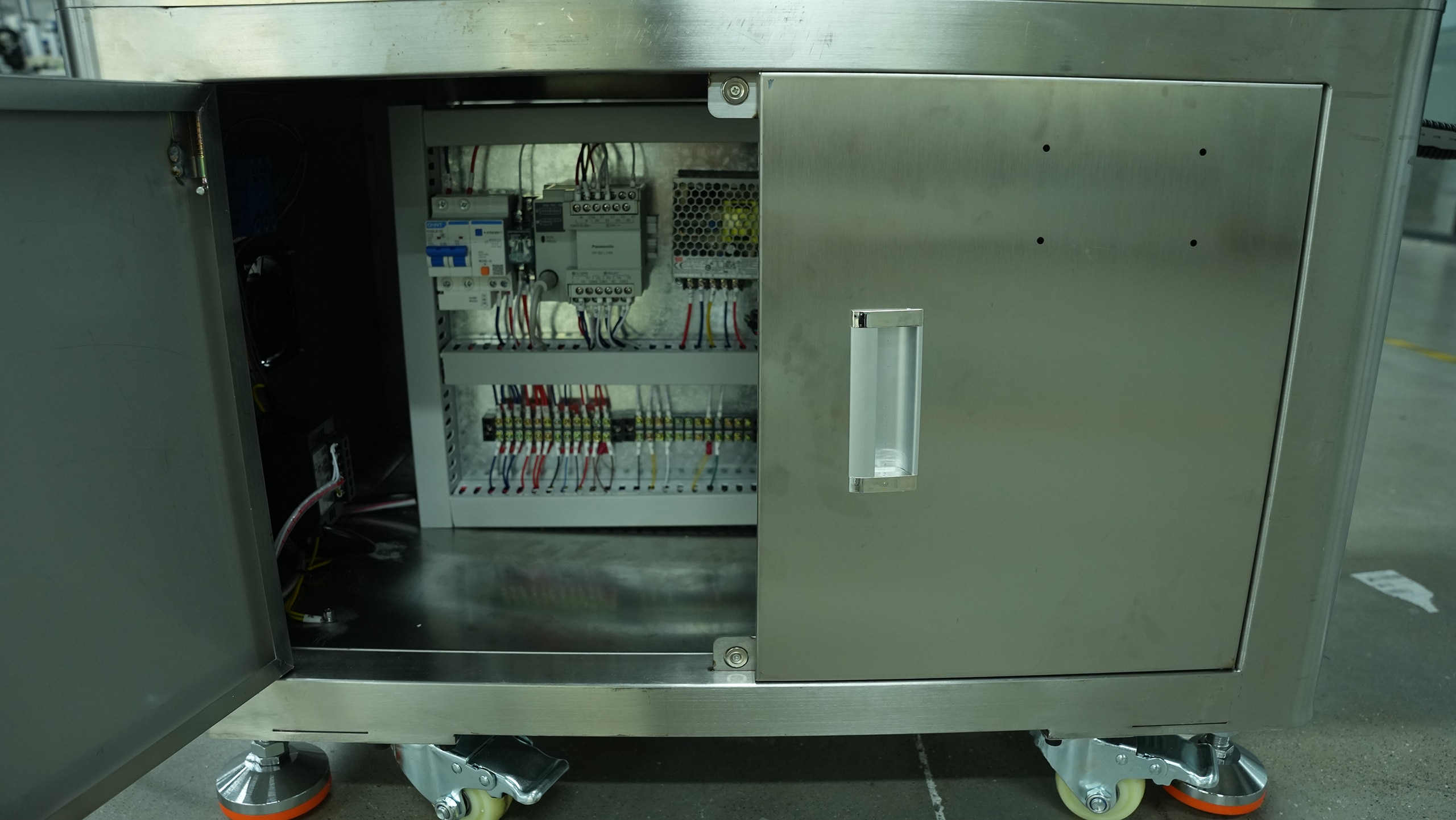

Electric Cabinet
Electrical cabinet of an automatic vial labeler machine, housing the control system and electrical components for stable and reliable machine operation.
Product Parameters for Automatic Vial Labeler Machine
| Parameter | Specification |
|---|---|
| Model | SL8805 |
| Labeling Accuracy | ±0.5 mm |
| Labeling Speed | 200-300 pcs/min, (diameter Ø16, height recommended to have a ratio no greater than 2.8) |
| Label Speed | 3-50 m/min |
| Applicable Product Size | Φ 10-22mm |
| Label Type | Self-Adhesive Pressure-Sensitive Labels |
| LABEL SIZE AVAILABLE | L: 20-100 mm W: 20-110 mm |
| Label Roll Inner Diameter | Ø76 mm |
| Max. Label Roll Outer Diameter | Ø300 mm |
| Conveyor Height | 2400 mm |
| Power Supply | AC 220/230V, 50Hz, 1 Phase |
| Power Consumption | 1.2 kW |
| Air Supply | 0.5–0.6 MPa |
| Machine Dimensions (L×W×H) | 2850 × 1360 × 1800 mm, Support customized based on customer's request |
| Machine Weight | 260 kg |
| Machine Materials | SUS304 Stainless Steel / Aluminum Profiles，Support customized in other SUS304 / SS316 / SUS316 Stainless Steel |
| Certificates | CE, ISO 9001 |
| Workflow | Vertical Feeding → Bottle Separating → Upright-to-Horizontal Transition → Horizontal Conveying → Bottle Positioning → Labeling → Label Inspection → Rejecting → Collection |
Label Specifications & Requirements for Automatic Vial Labeler Machine
| Parameter | Specification |
|---|---|
| Label Supply | Roll-fed |
| Label Gap | 2–3 mm ±0.2 mm |
| Recommended Release Liner | Glassine Paper |
| Release Liner Requirement | The release liner should be free from cuts, scoring, or other damage to ensure smooth label dispensing and reliable labeling operation. |
Automatic Vial Labelling Machine With Feeder

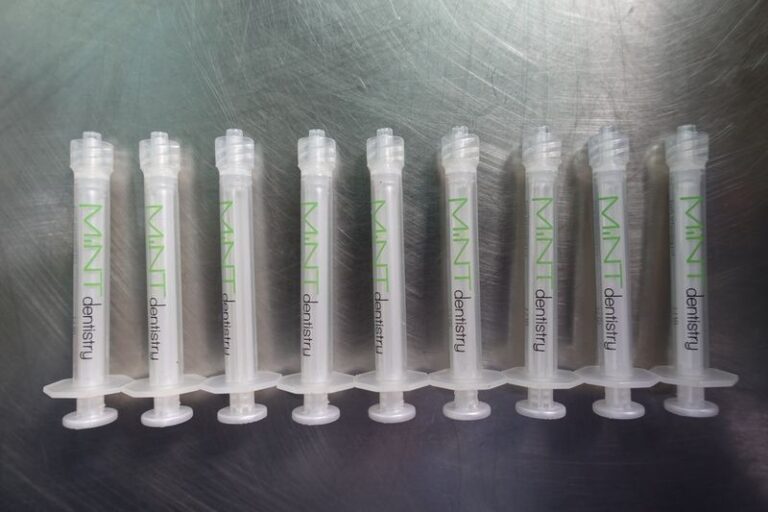

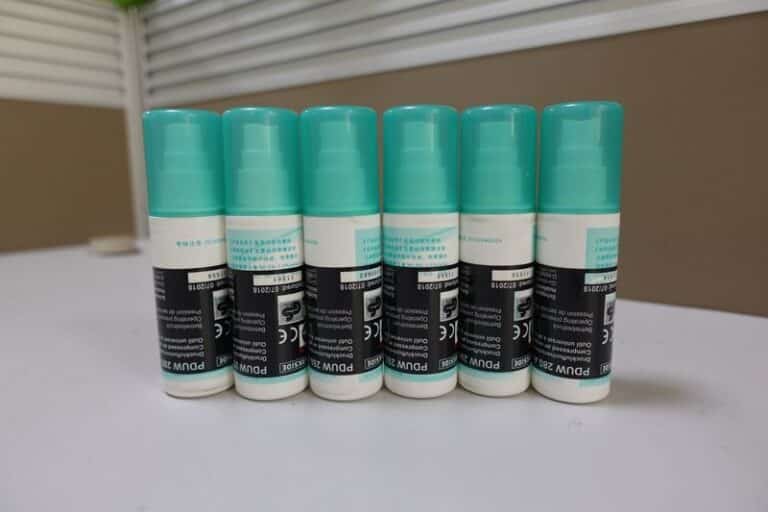

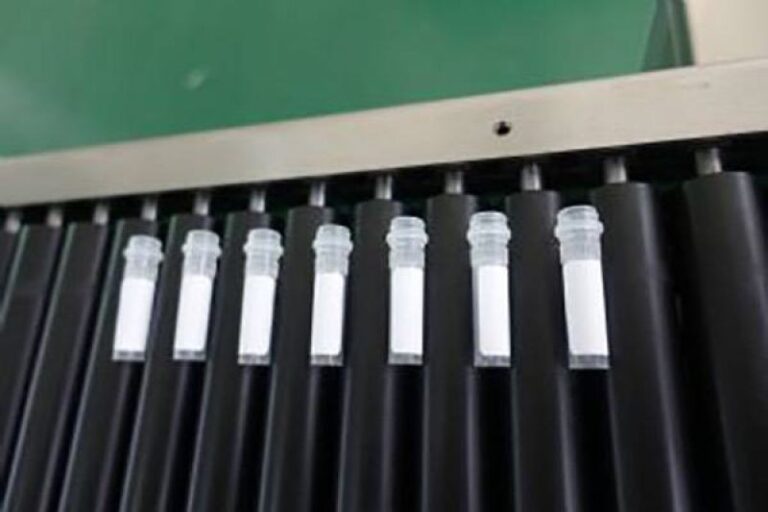

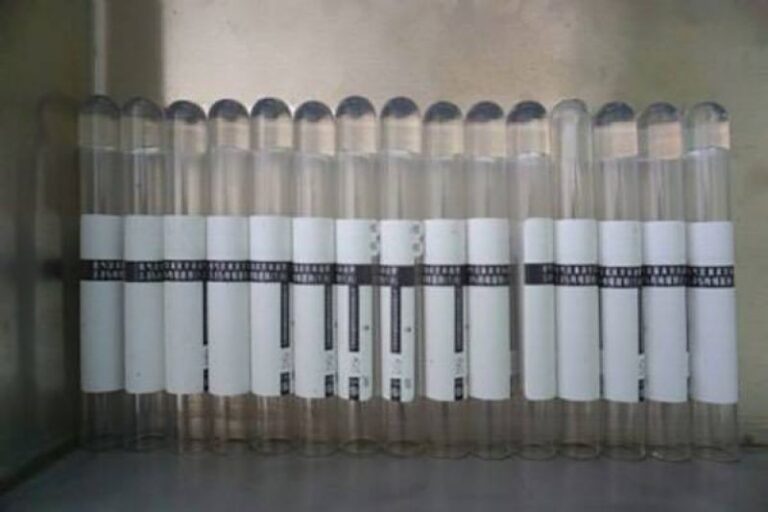

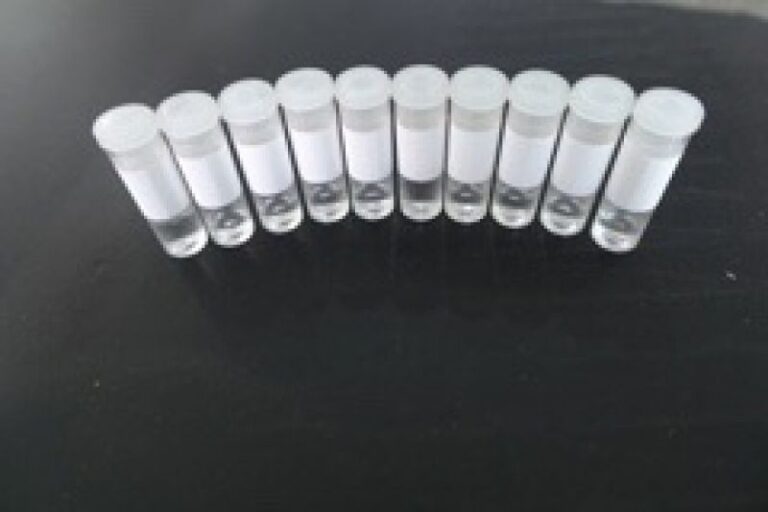

Application Scenarios for Automatic Vial Labeling System
Ready for Overseas Shipment
Frequently Asked Questions for Automatic Vial Labeler Machine
Q1: What is the labeling accuracy of this machine?
A: The machine offers high-precision performance with a labeling accuracy of ±0.5mm, ensuring consistent and professional placement on every vial.
Q2: What is the maximum production speed?
A: We offer two motor configurations:
- Stepper Motor: 100~200 pcs/min
- Servo Motor: 150~300 pcs/min
Q3: My vials are slim and unstable; can this machine handle them?
A: Yes, that is our specialty. This machine uses a horizontal conveying mode (vials lay down while moving). This design solves the instability issue of non-free-standing bottles, significantly increasing smoothness and precision.
Q4: What vial sizes can this machine accommodate?
A: It is designed for small round products with a diameter range of Φ10mm to Φ22mm.
Q5: What are the label size limitations?
A:
- Label Width (Backing paper): 20mm ~ 110mm
- Label Length: 20mm ~ 100mm
Q6: Can the machine print batch numbers or expiry dates?
- A: Yes. The system is expandable. We can integrate a ribbon coding module or an inkjet printing function to synchronize labeling and coding in one step.
Q7: What are the power and space requirements?
A:
- Power Supply: 220V/50HZ (Power: 1020W - 1470W).
- Dimensions: Approx. 1914mm × 730mm × 1515mm.
- Weight: Approx. 200kg (Heavy-duty build for high stability).
Q8: Which industries is this machine best suited for?
- A: It is ideal for Medical/Lab (blood test tubes, oral liquid), Cosmetics (lipsticks, small round bottles), and Bio-tech (vials, reagent tubes).
Q9: Which products are applicable with this automaic via labeling machinel
A:
Vials are applicable to products including but not limited to: adhesive tubes without nails, solid glue, cosmetic round bottles, lipsticks, oral liquid bottles, effervescent tablet bottles, blood collection test tubes, e-cigarette liquid bottles, batteries, sausages, ballpoint pens, etc.
Related Industries of Automatic Vial Labeling Machine
Food & Beverage Labeling
Labeling on bottles, boxes, plastic tubs, trays, and bags.
Pharmaceutical & Medical Labeling
Applying labels to medication boxes, medical device packaging, and sample kits.
Cosmetics & Personal Care Labeling
Labeling on bottles, jars, boxes, and tubes
Electronics Labeling
Applying labels on product boxes, manuals, and on the devices themselves
Logistics & Package Labeling
Applying shipping labels, barcodes, and address labels to various box sizes.
Hardware Product Labeling
Labeling on containers, cans, and parts boxes.
