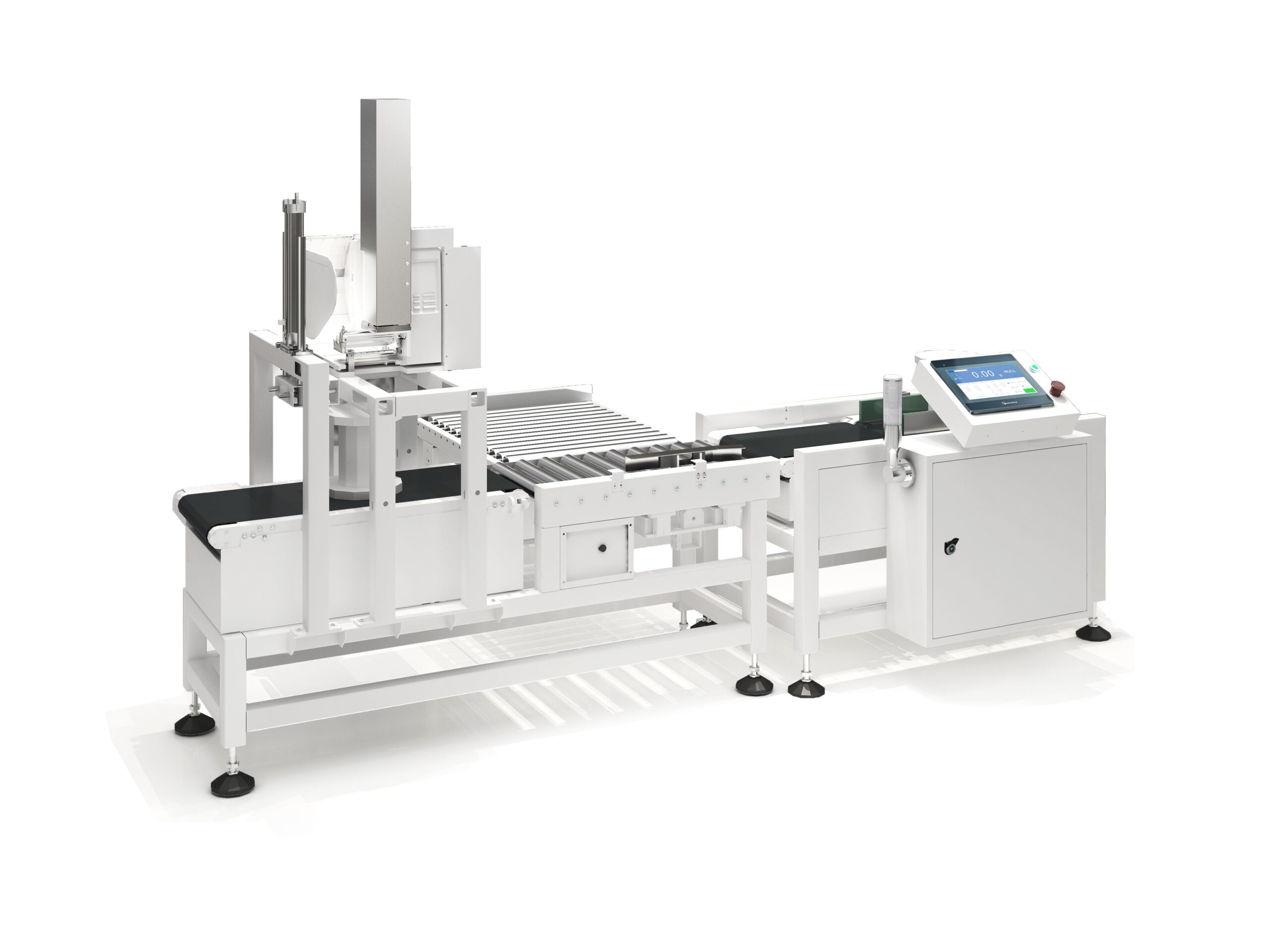

Warehouse Automatic Weighing Sorting and Labeling System
China Warehouse Sorting System for Small Spaces
The Warehouse Automatic Weighing Sorting and Labeling System integrates checkweighing, barcode reading, sorting, and automatic labeling into one streamlined process. Designed for warehouses, logistics centers, and distribution facilities, it can also be configured as a Warehouse Sorting System for Small Spaces with a compact layout and flexible conveyor design.
Product Features
- 100 product parameter memory
- Dynamic barcode/QR code printing
- MES & ERP system integration
- Flexible label template editing
- Adjustable labeling head
- Multiple labeling methods for different products
- IP65/IP66, ISO9001、CE Certificated.
Provide Custom ODM/OEM Warehouse Labeler System with Zebra Printer
Automatic Labeling System for Small Warehouse Logistics Packaging Industry
Product Parameters of Warehouse Automatic Labeling System
| Item | Specification | |||
|---|---|---|---|---|
| Product Model | SLWPA084 | |||
| Display Resolution | 0.001 kg | |||
| Weighing Range | 10 g–50 kg, Customizable | |||
| Weighing Accuracy | ±0.5–2 g | |||
| Weighing Section Size | L 500 × W 300 mm, Customizable | |||
| Suitable Product Size | L ≤300 mm; W ≤300 mm, Customizable | |||
| Optional Features | Real-Time Printing, Code Reading & Sorting, Online Coding, Online Code Reading, and Online Labeling | |||
| Stored Product Recipes | 100 | |||
| Labeling Speed | 15–25 pcs/min, Customizable | |||
| Labeling Position Accuracy | ±5–10 mm | |||
| Labeling Method | Vacuum Labeling | |||
| Certificates | ISO9001/CE/IP65/IP66 | |||
| Power Supply | AC 220 V ±10% | |||
| Machine Body Material | Stainless Steel 304 | |||
| Data Export | USB Data Export | |||
| WorkFlow | Product Infeed → Automatic Weighing → Qualified Product Inspection → Side Print & Apply Labeling → Product RollBack → 180° Cross Pop-up Rotation → Counter-side Labeling → Final Sorting & Delivery |
Product Video of Automatic Weighing Sorting and Labeling System for Warehouse
Ready for Overseas Shipment
The warehouse automatic weighing sorting and labeling line has been carefully packed and shipped from our factory in China for overseas delivery.
Frequently Asked Questions of Warehouse Automatic Weighing Sorting and Labeling System
Q1: What is a Warehouse Automatic Weighing Sorting and Labeling System?
The Warehouse Automatic Weighing Sorting and Labeling System is an integrated automation solution combining automatic checkweighing, product sorting, print and apply labeling, and intelligent conveying. It is designed for small warehouses, logistics centers, and manufacturing facilities to improve labeling accuracy, processing speed, and product traceability.
Q2: How does the automatic weighing sorting and labeling system work?
The system automatically transports products through the conveyor line, measures product weight, checks product qualification, prints labels with real-time information, and applies labels accurately.
Q3: What products can be processed by this automatic weighing and labeling system?
The system is suitable for various packaged products, including:
- Cartons and boxes
- E-commerce parcels
- Logistics packages
- Food packaging
- Pharmaceutical packages
- Consumer goods
- Industrial products
The system can be customized according to product size, weight, and packaging requirements.
Q4: Can the system print and apply labels automatically based on weighing data?
Yes. The system can connect the weighing module with the print and apply labeling unit to automatically generate labels according to real-time data, including:
- Product weight
- Barcode
- QR code
- Batch number
- Tracking information
Q5: What is the function of the 180° Cross Pop-up Rotating Mechanism?
The 180° Cross Pop-up Rotating Mechanism automatically changes product direction by 180°, allowing products to enter the opposite-side labeling station without manual adjustment.
This enables flexible labeling solutions for different product surfaces.
Q6: Can this system perform double-side or counter-side labeling?
Yes. Through the Product RollBack function and 180° rotating mechanism, products can be automatically repositioned for counter-side labeling, supporting multi-direction labeling requirements.
Q7: What is the labeling speed and weighing accuracy?
The system speed and weighing accuracy depend on:
- Product size and weight range
- Label dimensions
- Conveyor configuration
- Application requirements
Shiny Automation provides customized solutions according to customers' throughput and accuracy requirements.
Q8: Can the system integrate with WMS, ERP, or warehouse management software?
Yes. The system can communicate with warehouse management systems (WMS), ERP systems, barcode databases, and logistics software for automatic data exchange and product tracking.
Q9: Is the automatic weighing sorting and labeling system customizable?
Yes. The system can be customized according to:
- Product dimensions and weight
- Labeling position
- Conveyor layout
- Production speed
- Communication requirements
- Existing production lines
Q10: Why choose an automatic weighing sorting and labeling system instead of manual labeling?
Compared with manual labeling, the automatic system provides:
✔ Higher labeling accuracy
✔ Faster warehouse processing
✔ Reduced labor requirements
✔ Real-time data printing
✔ Better product traceability
✔ Easy integration with smart warehouse systems
