Automatic Box Corner Labeling Machine
Custom Automatic Box Corner Labeling Machine Factory
The Automatic Corner Labeling and Sealing Machine is designed to apply sealing labels precisely on the corners of cartons and packaging boxes. It delivers ±1mm labeling accuracy and a stable speed of 40–150 pcs/min, making it ideal for industries that require tamper-proof sealing and high-quality packaging presentation. With advanced automation, it reduces manual labor while ensuring consistent performance for both small and large production lines.
Applications:
Electronics – Tamper-proof labeling for mobile phones, earphones, and consumer electronics packaging.
Pharmaceuticals – Secure sealing of medicine cartons to ensure product safety.
Cosmetics & Personal Care – Neat and professional sealing for beauty and skincare packaging.
Food & Beverages – Protecting product integrity and extending shelf appeal.
Daily Chemicals – Secure packaging for detergents, cleaning supplies, and chemical boxes.
Key Features：
High-speed & Precision labeling
Customizable for different products and label sizes
Durable & Reliable for long term use
Panasonic PLC Controlled/ Bier Servor Motor Driven
Highly Precision Auto Box Corner Labeling Machine
Label Sensor
It makes sure accurate alignment by continuously monitoring the label’s position, reducing the risk of label misplacement
Product Sensor
It detects the presence or absence of a target by transmitting a light beam and measuring the intensity of the reflected signal for high-speed, precise positioning
HMI with Emergency Stop
Provide user-friendly interface for Controls settings, monitors performance, and diagnoses issues
Recycling & Traction
Collect waste materials and provide stable traction to prevent clogging and keep the production line clean.
Servo Motor
Provide precise label feeding & positioning, and high Speed & rapid response
Pressing Device
Ensures products remain stable during labeling to prevent movement or misalignment, enabling accurate labeling.
Adjustment Mechanism
The height, position and Angle can be precisely adjusted to ensure accurate marking of products of various sizes and shapes.
Electric Cabinet
Accommodate electrical components and control systems.
Product Parameters
| MODEL | SL9801 | |||
| LALBELING ACCURANCY | ±1 mm | |||
| LALBELING RATE | 30～120 Pcs/Min | |||
| PRODUCT SIZE AVAILABLE | 50～200 mm IN LENGTH | 30～200 mm IN WIDTH | 50～150 mm IN WIDTH | |
| LABEL SIZE AVAILABLE | 10-150 mm IN LENGTH | 20-100 mm IN WIDTH | ||
| MACHINERY DIM. | 2300*1050*1460 mm | （L*W*H） | ||
| GENERAL WORKING VOLT. | 220V/50HZ | |||
| MACHINERY WEIGHT | 180 KG |

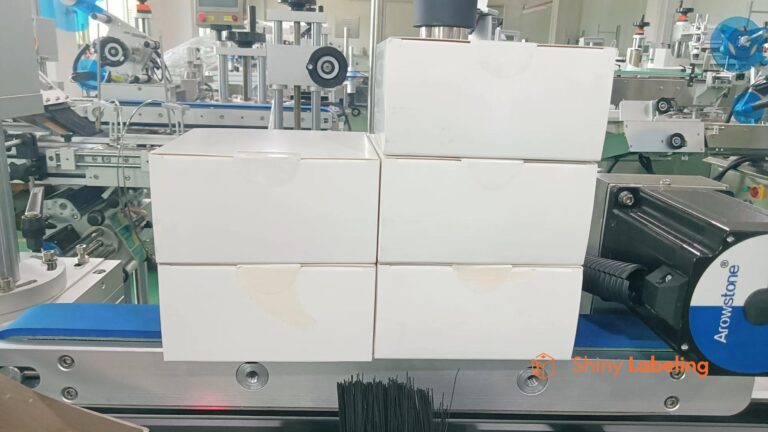

Case Video of Auto Box Corner Labeling Machine

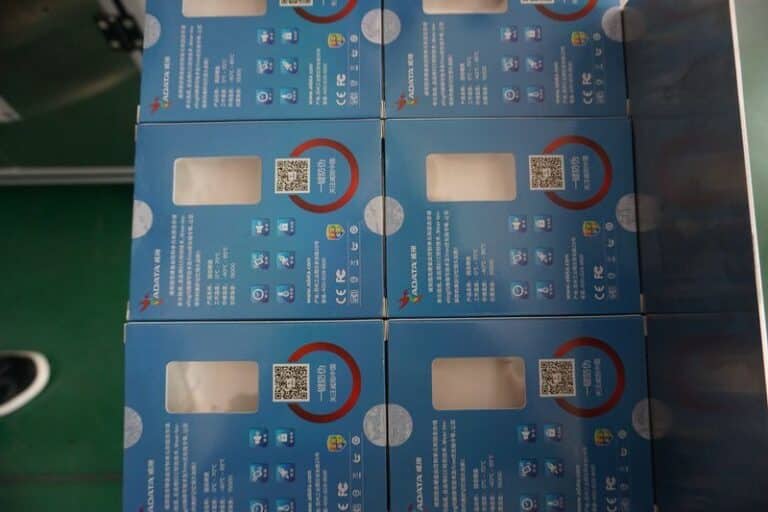

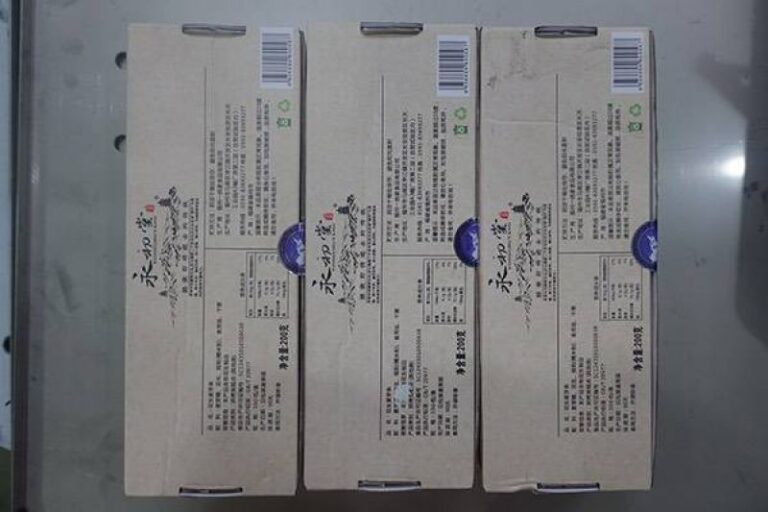

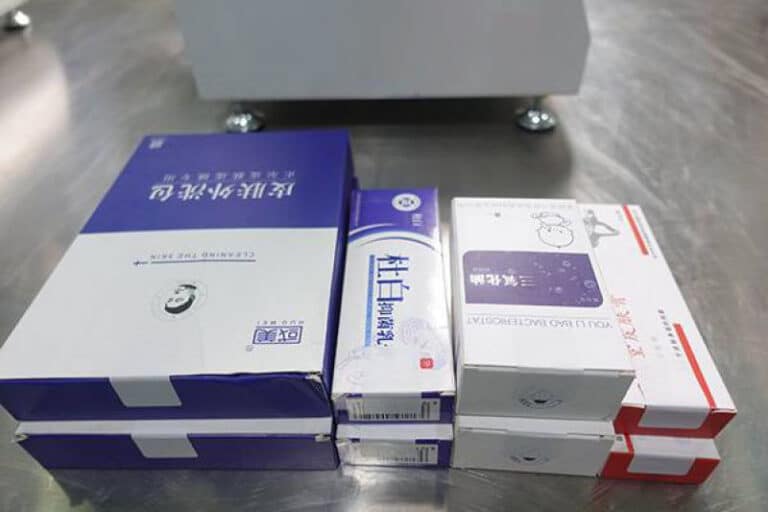

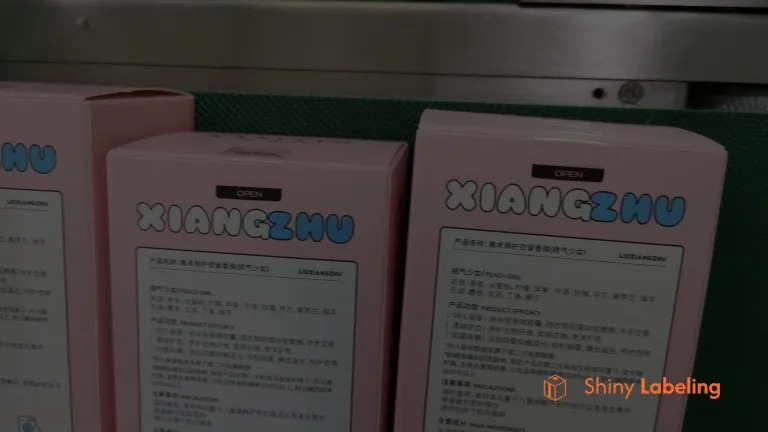

Applications of Auto Box Lableing Machine
Frequently Asked Questions (FAQs)
Q: What types of labels are supported?
Our machine supports all standard self-adhesive labels in roll form, including paper labels, PET, BOPP, and other film materials.
Q: Can it handle transparent labels?
Yes, the machine can handle transparent labels. We use a high-sensitivity label sensor specifically designed for transparent or clear labels to ensure accurate detection and positioning.
Q: What is the max label roll size?
The standard configuration supports a maximum roll outer diameter of 280 mm, with a core diameter of 76 mm (3 inch).
Q: Does it support different adhesives?
Yes, the machine is compatible with various adhesive types, including permanent, removable, and high-tack adhesives, as long as they are standard self-adhesive labels.
Q: Can the machine be customized according to our label specifications?
Yes, we can customize the machine according to your label size, material, and application requirements.
Q: Do you also offer customized adhesive labels?
Yes, we can provide customized labels based on your size, material, and application requirements.
Q: Do you require single-side sealing or double-side corner labeling simultaneously?
Dual-Head Efficiency: We can customize and Equipped with two labeling heads to apply two corner labels simultaneously. For products requiring only one seal, one head can be easily deactivated.
Versatile Labeling Positions: The labeling heads are adjustable to accommodate side-sealing, top-sealing, or side-turn sealing based on your box orientation.
Seamless Integration: Includes an automatic conveyor system. It can operate as a standalone unit or be fully integrated with upstream production lines.
Labor Saving: Can be customized with automatic feeding or receiving devices to further reduce manual labor.
Q: What Applications is the Auto Box Corner Labeling Machine
Consumer Electronics: Mobile phone and tablet packaging seals.
Beauty & Care: Cosmetic set box sealing.
Retail: Playing card boxes, medicine boxes, and bank card kits.
Q: What are the Length, Width, and Height of your boxes?
Our machine supports 50–200mm Length, 30–200mm Width, and 50–150mm Height
Q: What is the label size?
Our machine supports 10–150mm Length and 20–100mm Width
Q: What is your target output per minute?
Our standard range is 30–120 pcs/min
Q: Do you need to print production dates or batch numbers on the label or box during the process?
We can Integrate Coding (Optional): Supports synchronous coding via Ribbon Coder, Inkjet Printer, or Laser Jet Printer to mark production dates and batch codes while labeling.
