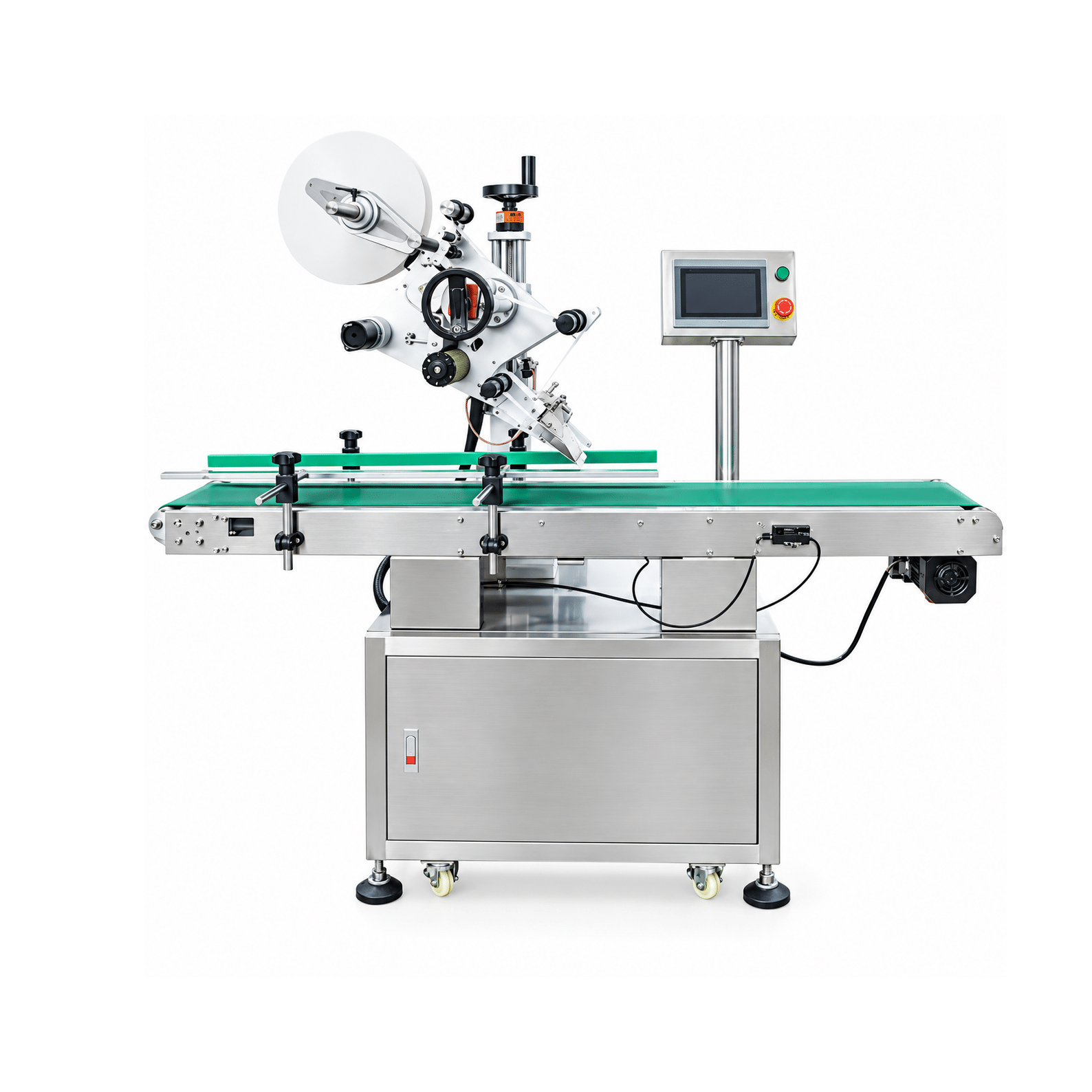

Automatic Box Labeling Machine
Custom Automatic Box Labeling System Manufacturer
The Automatic Box Labeling Machine is designed for applying self-adhesive labels accurately and consistently to cartons, paper boxes, and other flat-sided packaging. It uses a stable conveying and positioning system to keep boxes aligned during labeling, while the adjustable rollers, pressing device, and label sensor help maintain precise label placement.
Key Features and Advantages:
- High-speed & Precision labeling
- Customizable for different products and label sizes
- Durable & Reliable for long term use
Panasonic PLC Controlled/ Bier Servor Motor Driven
Label Applicator Machine for Boxes

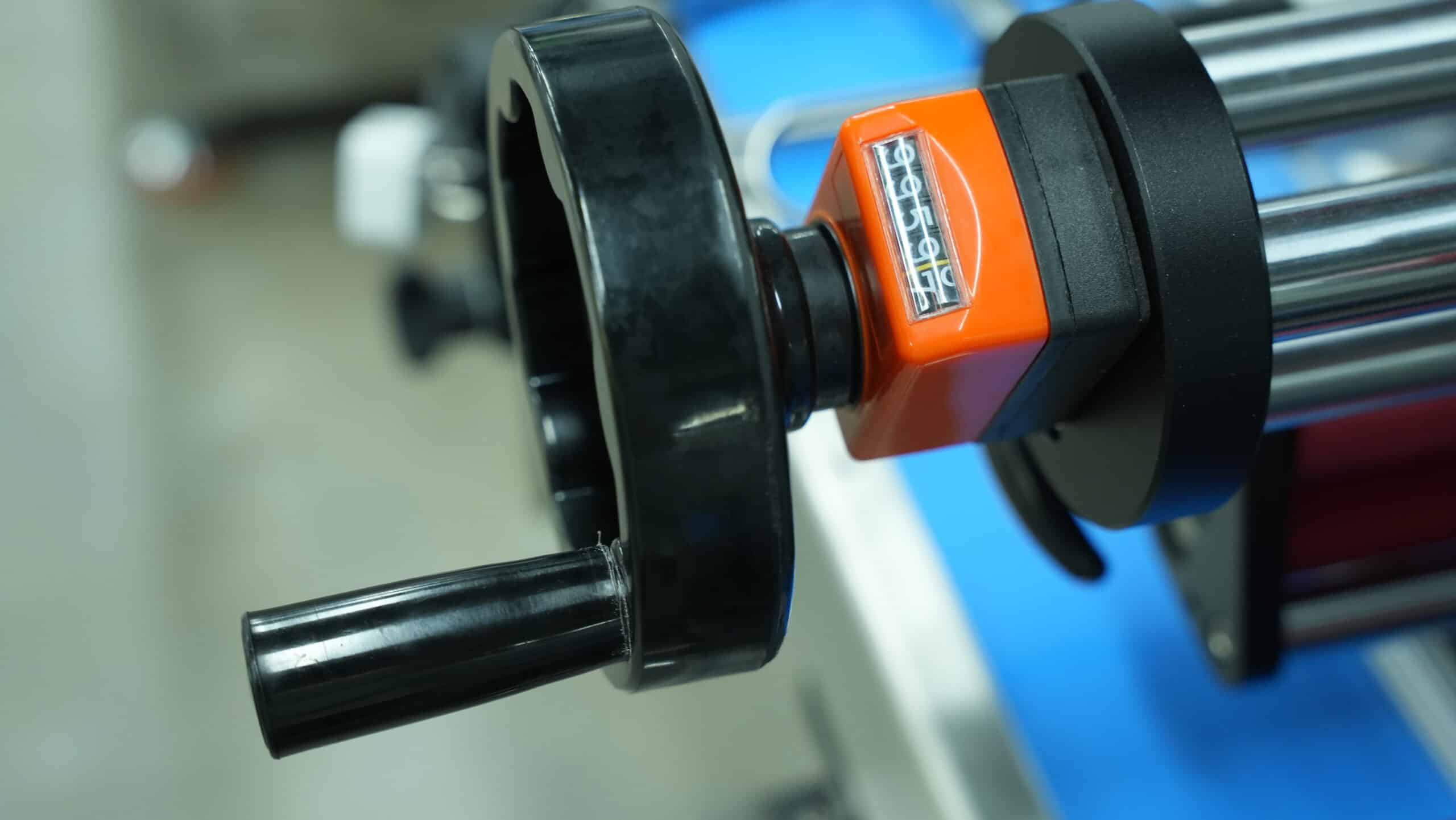

Roller Adjustment
Adjustable rollers on an automatic box labeling machine for different box sizes and precise label positioning

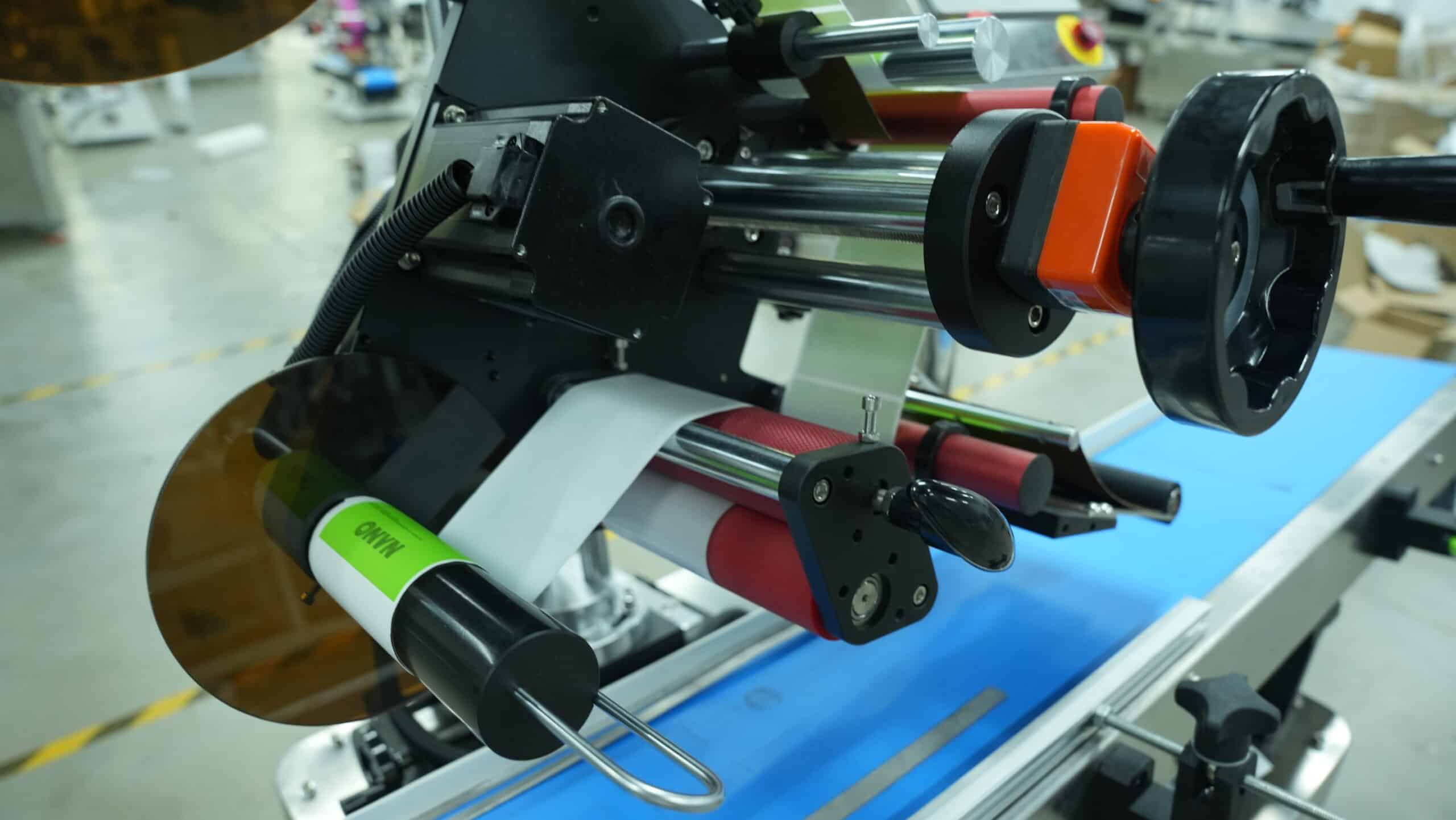

Recycling & Traction
Collect waste materials and provide stable traction to prevent clogging and keep the production line clean.

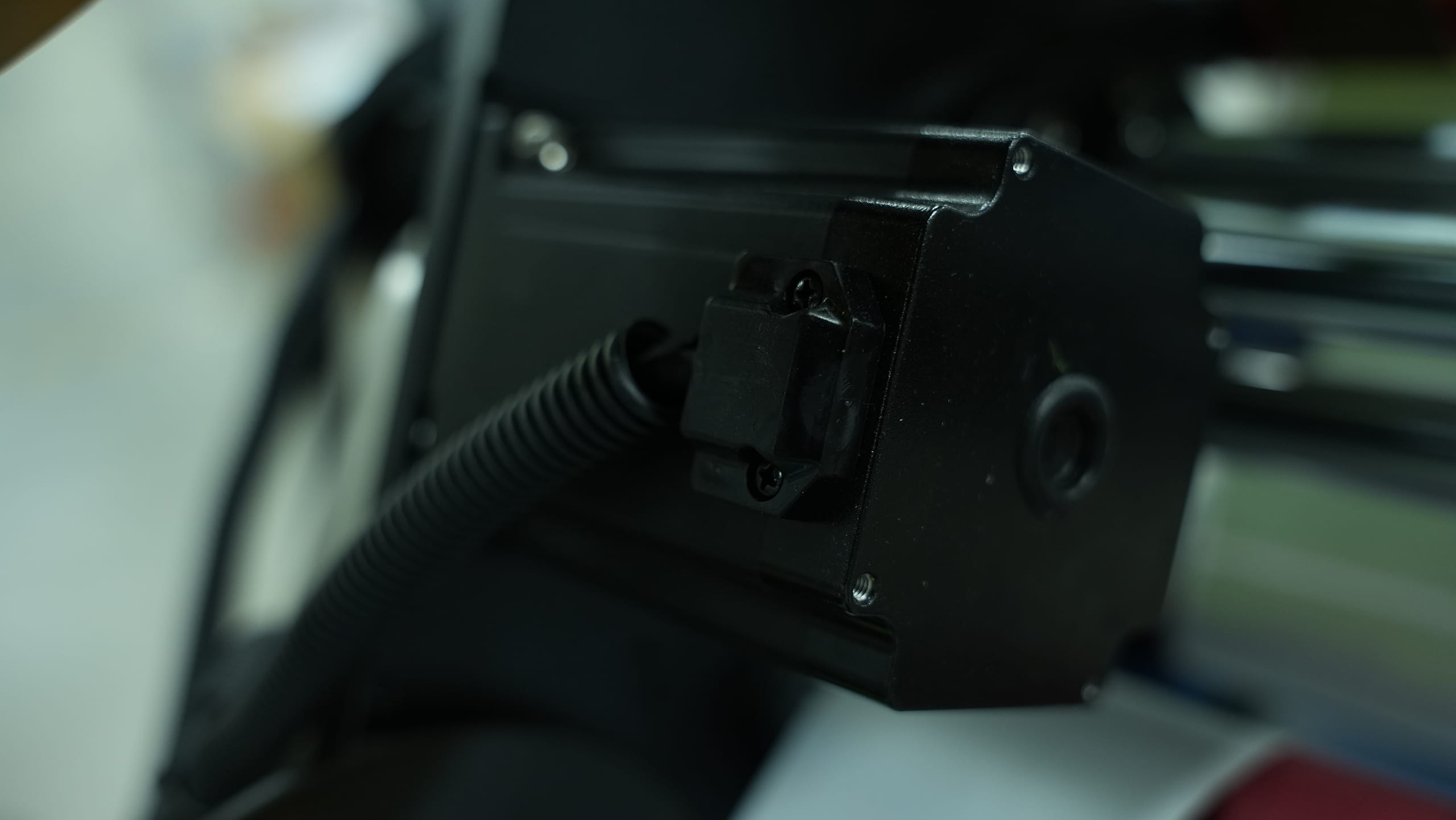

Servo Motor
Provide precise label feeding & positioning, and high Speed & rapid response

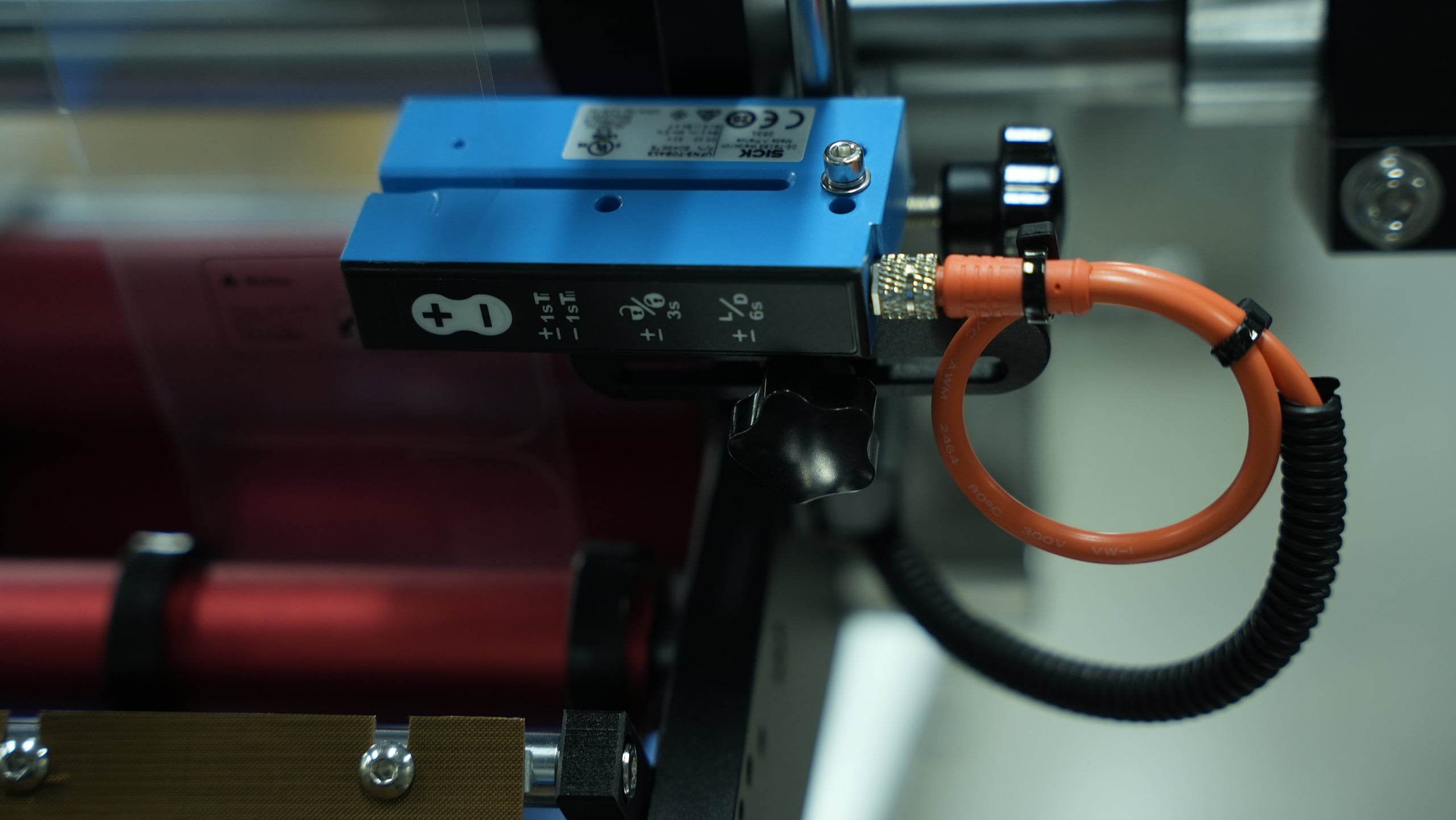

Label Sensor
Label sensor on an automatic box labeling machine for precise label detection and accurate box labeling

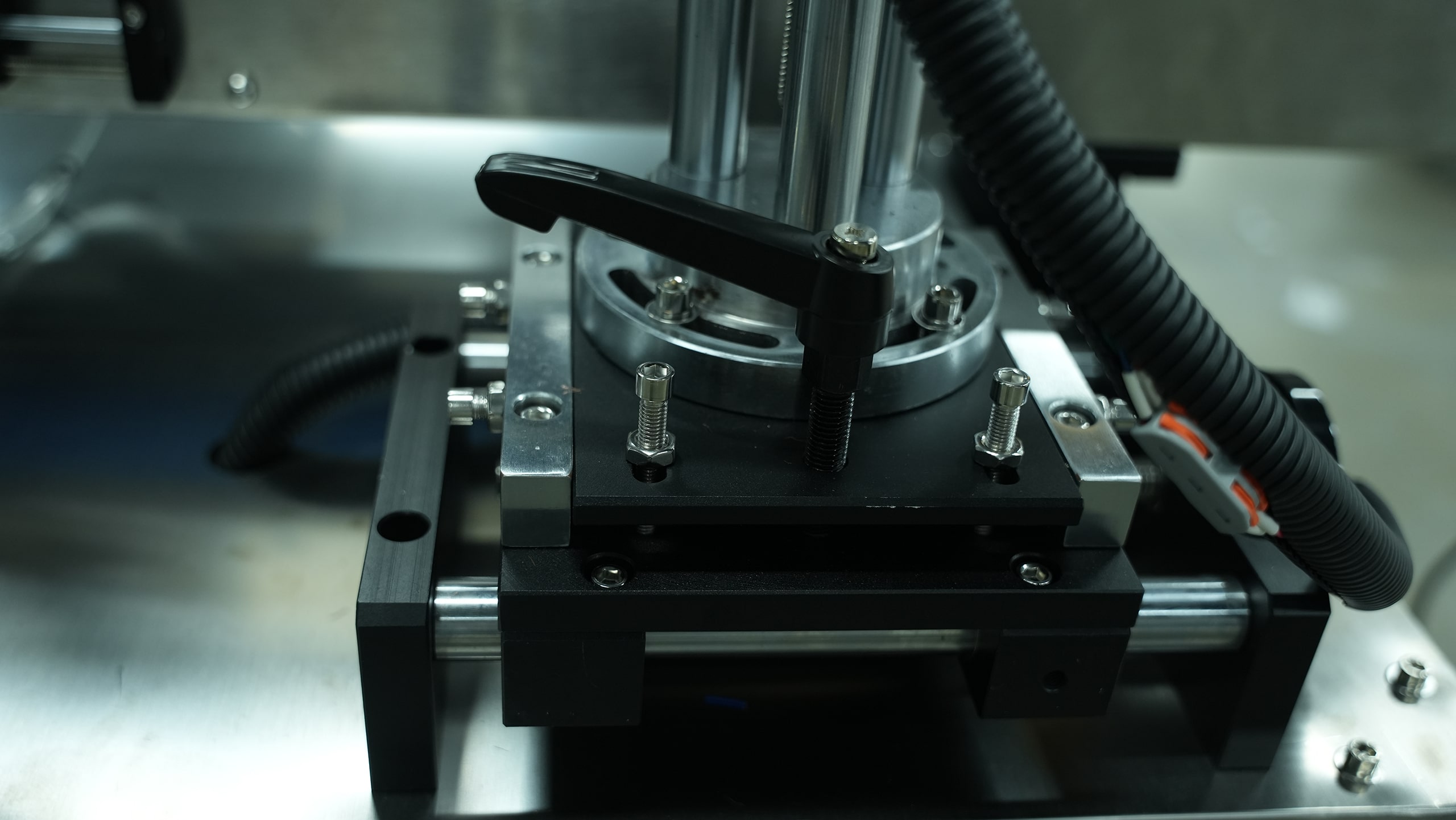

Adjustment Mechanism
The height, position and Angle can be precisely adjusted to ensure accurate marking of products of various sizes and shapes.

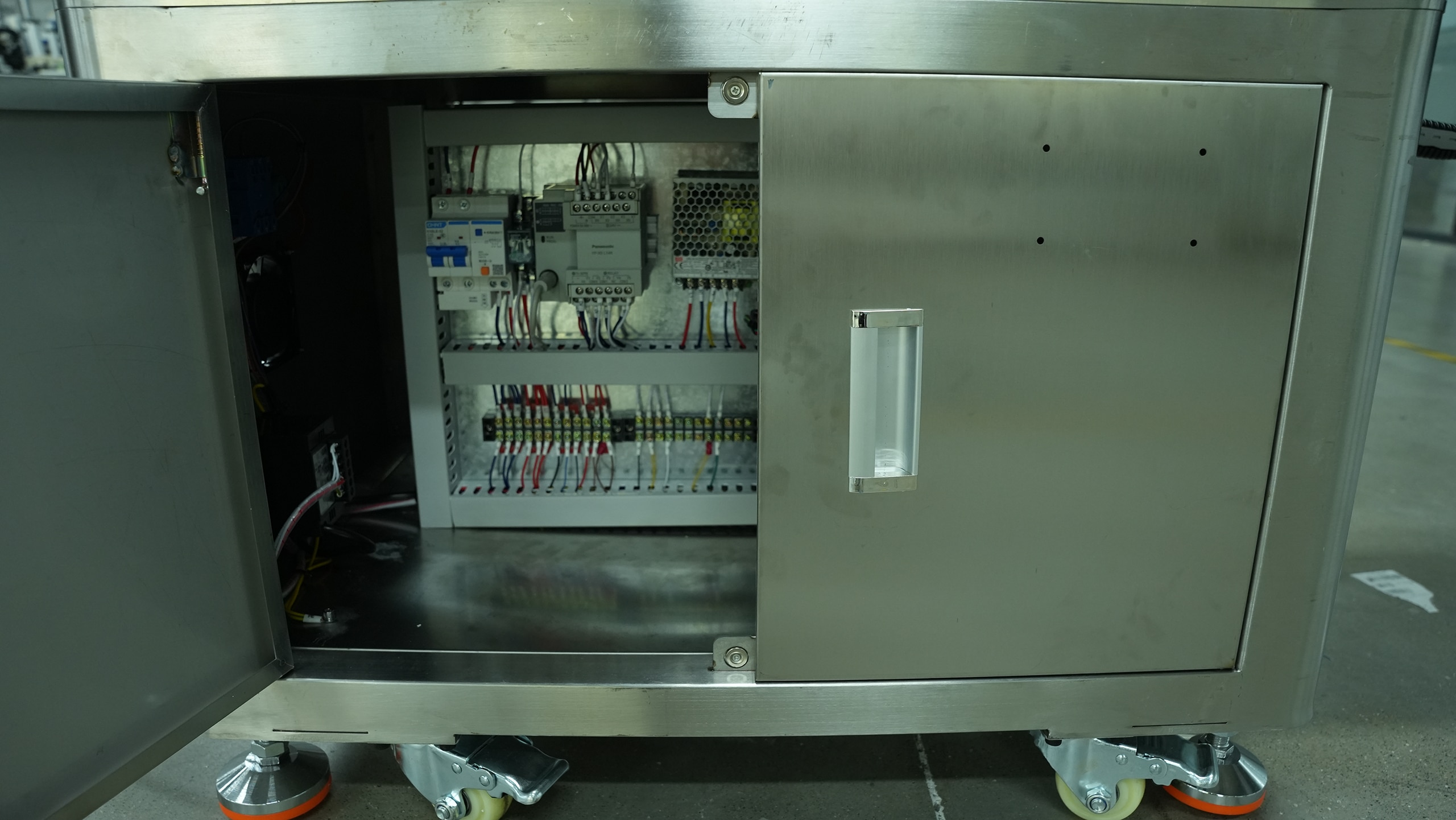

Electric Cabinet
Accommodate electrical components and control systems.
Product Parameters for Automatic Box Label Machine
| Parameter | Specification |
|---|---|
| Model | SL9801 |
| Labeling Accuracy | ±1 mm |
| Labeling Speed | 30–120 pcs/min (Customizable) |
| Applicable Product Size | L: 50–200 / W: 30–200 / H: 50–150 mm, Customizable |
| Applicable Label Size | L: 10–150 / W: 20–100 mm, Customizable |
| Label Type | Self-Adhesive Pressure-Sensitive Labels |
| Label Roll Inner Diameter | Ø76 mm |
| Max. Label Roll Outer Diameter | Ø300 mm |
| Conveyor Height | 750 ± 50 mm |
| Power Supply | AC 220/230V, 50Hz, 1 Phase |
| Power Consumption | 1.2 kW |
| Air Supply | 0.5–0.6 MPa |
| Machine Dimensions (L×W×H) | 2300 × 1050 × 1460 mm, Support customized based on customer's request |
| Machine Weight | 180 kg |
| Machine Materials | SUS304 Stainless Steel / Aluminum Profiles，Support customized in other SUS304/ SS316 / SUS316 Stainless Steel |
| Certificates | CE, ISO 9001 |
| Workflow | Carton Feeding → Product Detection → Carton Positioning → Label Dispensing → Label Application → Label Pressing → Finished Product Output |
Label Specifications & Requirements for Automatic Box Label Machine
| Parameter | Specification |
|---|---|
| Label Supply | Roll-fed |
| Label Gap | 2–3 mm ±0.2 mm |
| Recommended Release Liner | Glassine Paper |
| Release Liner Requirement | The release liner should be free from cuts, scoring, or other damage to ensure smooth label dispensing and reliable labeling operation. |
Case Video of Auto Box Label Applicator

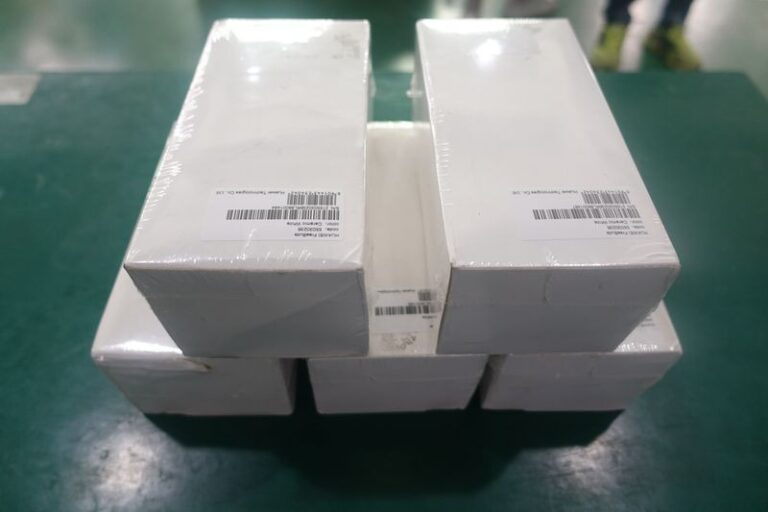

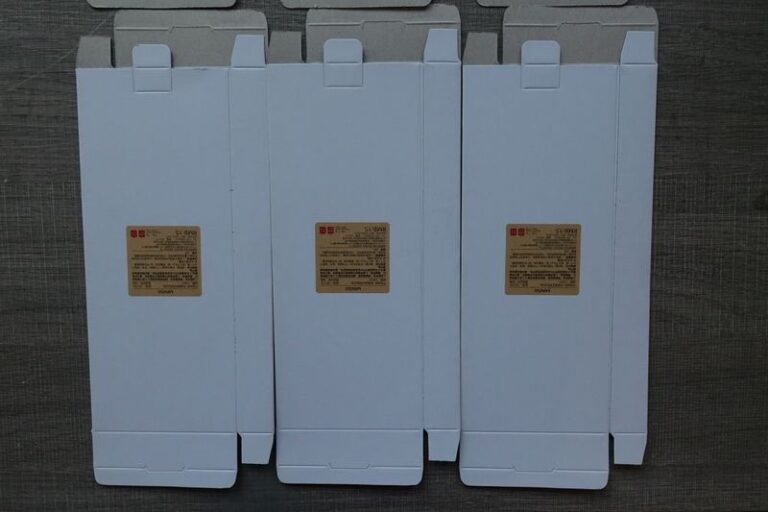

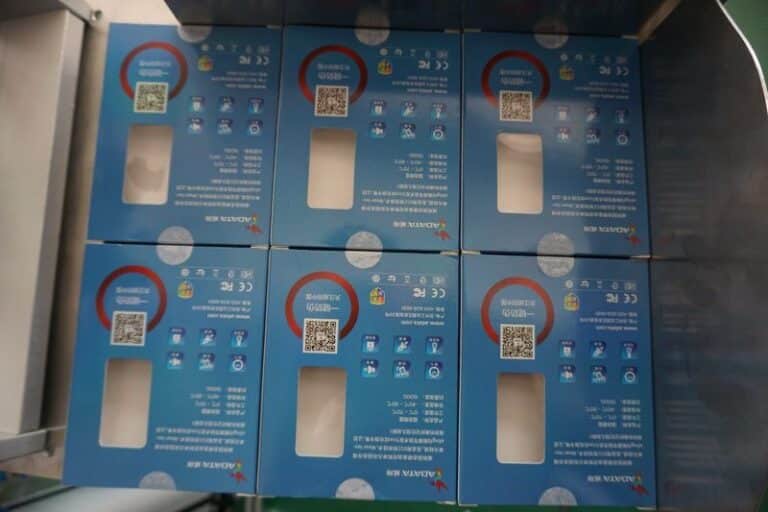

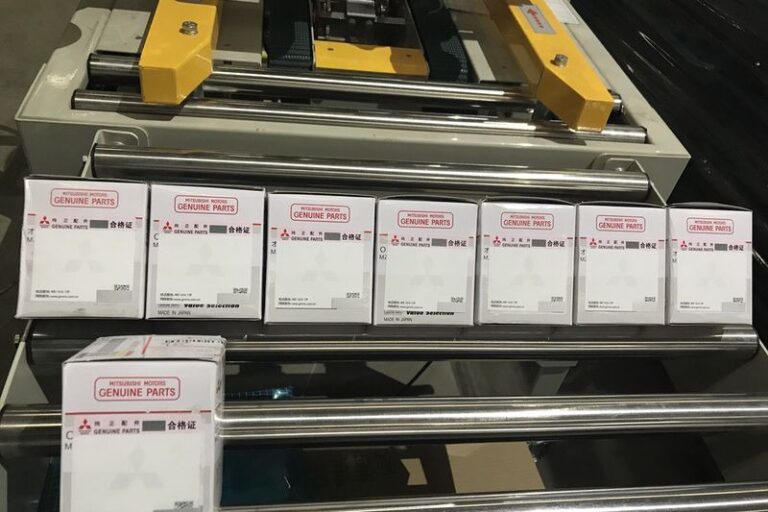

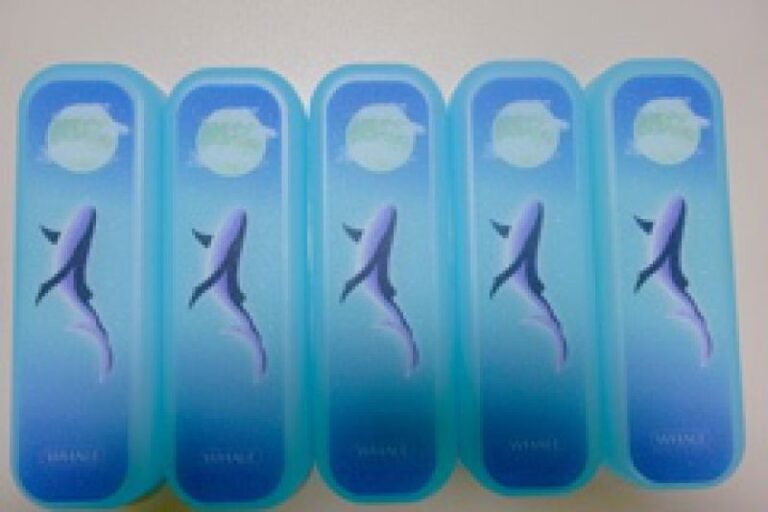

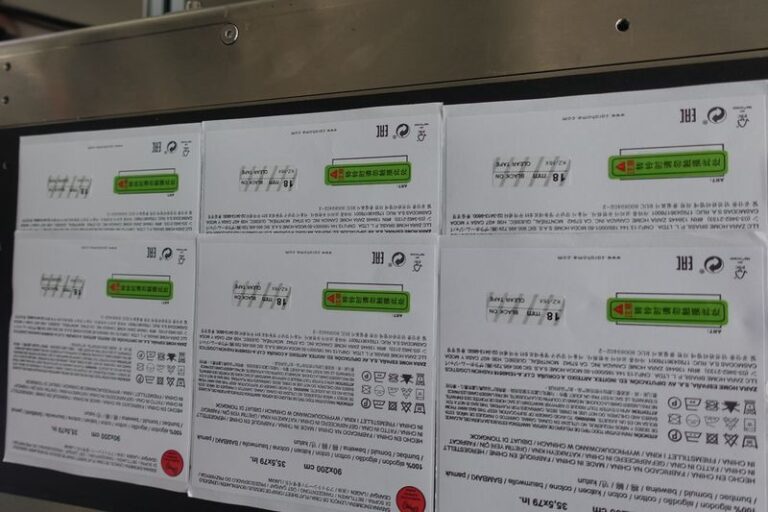

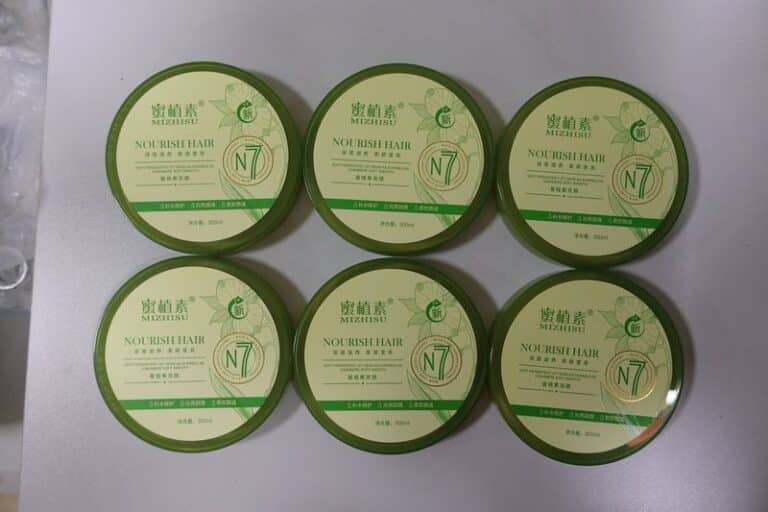

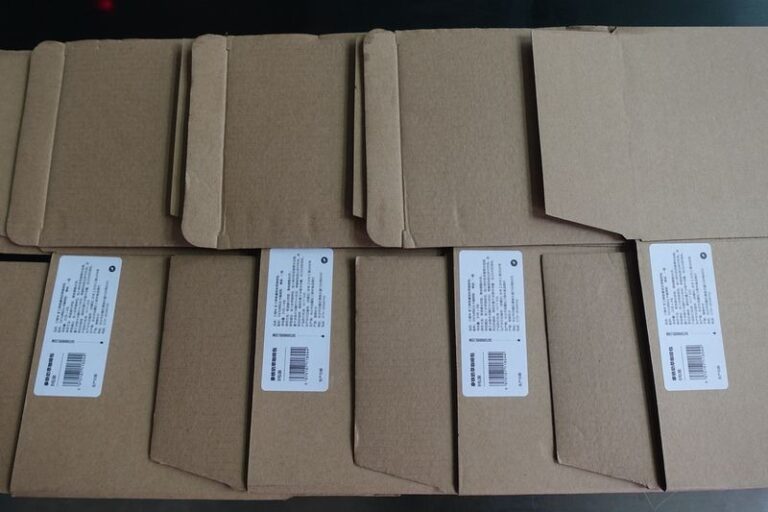

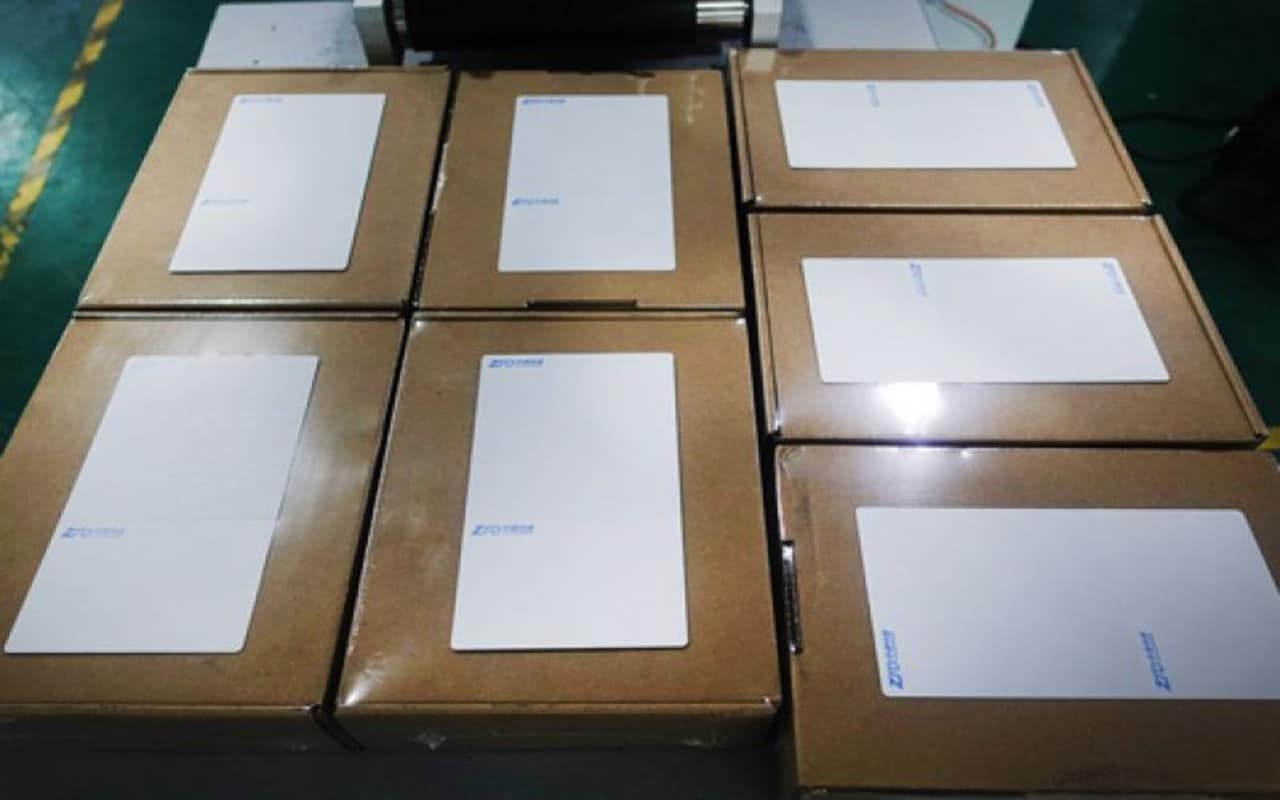

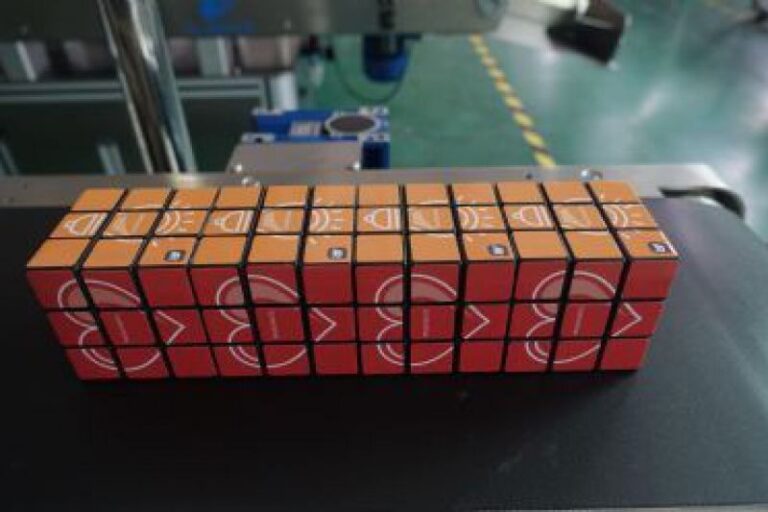

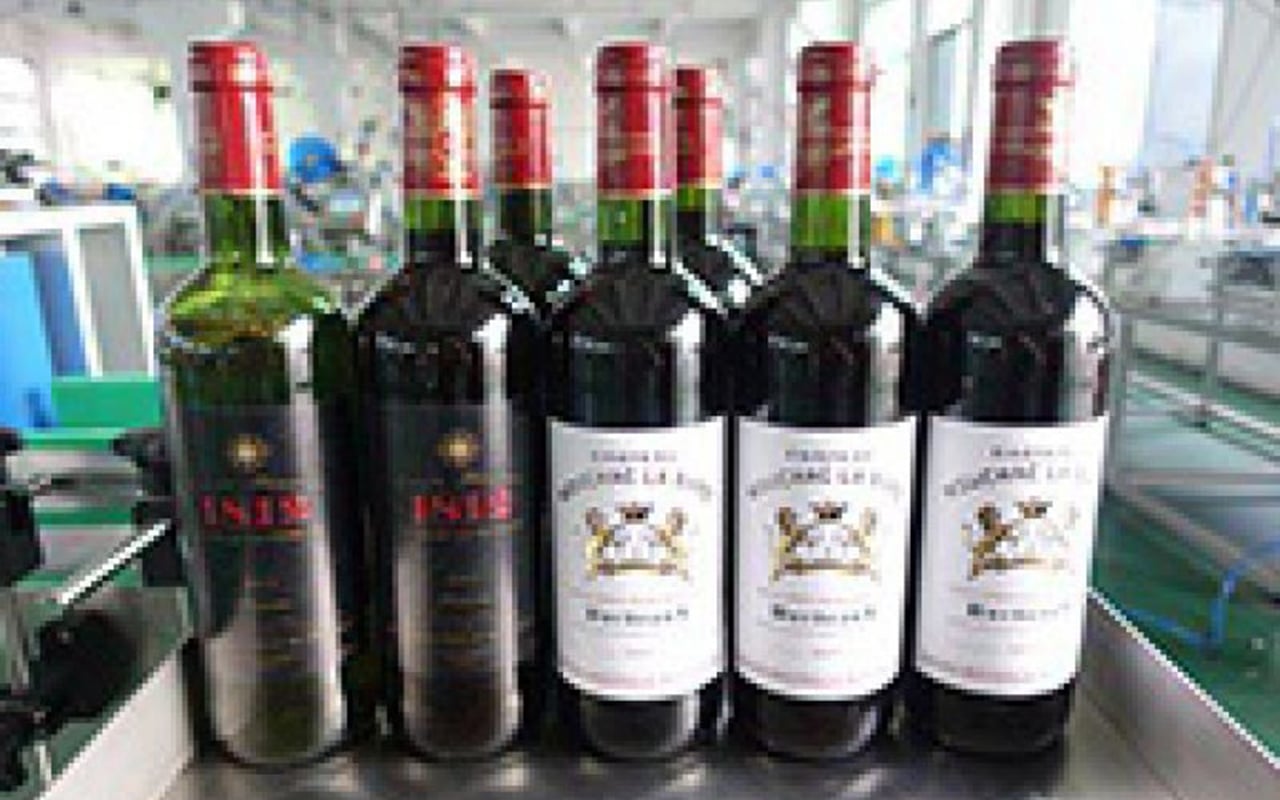

Application Scenarios for Automatic Box Labeler
Ready for Overseas Shipment
Frequently Asked Questions for Auto Box Labeler Machine
Q1: What types of labels are supported?
Our machine supports all standard self-adhesive labels in roll form, including paper labels, PET, BOPP, and other film materials.
Q2: Can it handle transparent labels?
Yes, the machine can handle transparent labels. We use a high-sensitivity label sensor specifically designed for transparent or clear labels to ensure accurate detection and positioning.
Q3: What is the max label roll size?
The standard configuration supports a maximum roll outer diameter of 280 mm, with a core diameter of 76 mm (3 inch).
Q4: Does it support different adhesives?
Yes, the machine is compatible with various adhesive types, including permanent, removable, and high-tack adhesives, as long as they are standard self-adhesive labels.
Q5: Can the machine be customized according to our label specifications?
Yes, we can customize the machine according to your label size, material, and application requirements.
Q6: Do you also offer customized adhesive labels?
Yes, we can provide customized labels based on your size, material, and application requirements.
Q7: What kind of products can this machine label?
A:
This machine is suitable for a wide range of flat or slightly curved surface products, such as books, bags, folders, lunch boxes, square bottles, lids, square cans, disposable tableware, glass items, and more.
Q8: What is the applicable product size range?
A: Below is standard machine
- Length: 40–400 mm
- Width: 40–200 mm
- Height: 0.2–150 mm
Q9: What label sizes are supported?
A: Below is standard machine
- Label Length: 6–190 mm
- Label Width: 20–170 mm
Q10: What is the labeling accuracy of the machine?
A:
The labeling accuracy is ±1 mm, ensuring precise and consistent label placement.
Q11: What is the labeling speed?
A:
The machine operates at a speed of 40–150 pcs/min, depending on product and label size.
Q12: Can this machine label slightly curved surfaces?
A:
Yes, it is suitable for flat surfaces and small curved surfaces such as square bottles and lids.
Related Industries of Auto Labelling Machine
Food & Beverage Labeling
Labeling on bottles, boxes, plastic tubs, trays, and bags.
Pharmaceutical & Medical Labeling
Applying labels to medication boxes, medical device packaging, and sample kits.
Cosmetics & Personal Care Labeling
Labeling on bottles, jars, boxes, and tubes
Electronics Labeling
Applying labels on product boxes, manuals, and on the devices themselves
Logistics & Package Labeling
Applying shipping labels, barcodes, and address labels to various box sizes.

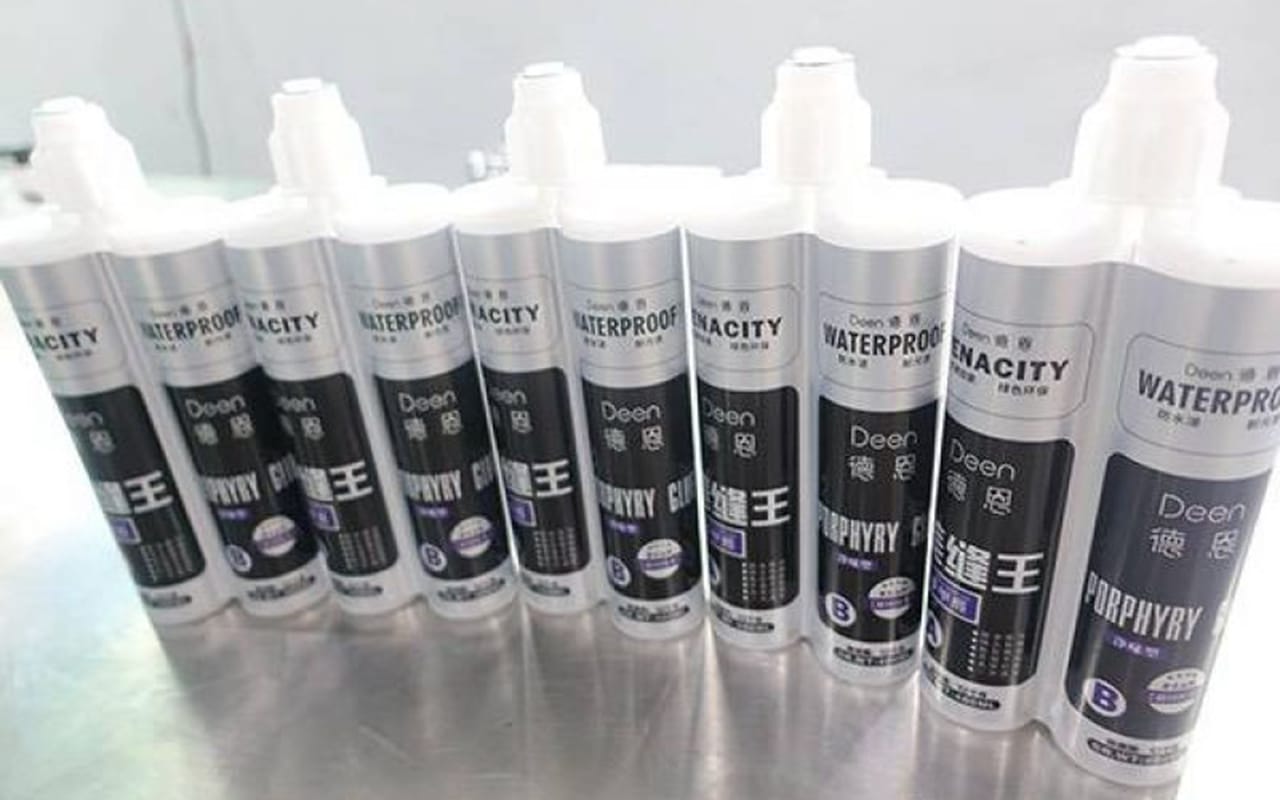

Hardware Product Labeling
Labeling on containers, cans, and parts boxes.
