Automatic Checkweigher with Print and Apply Bottom Labeler
Customized Automatic Food Checkweigher Manufacturer in China
Product Features
- 100 product parameter memory
- Dynamic barcode/QR code printing
- MES & ERP system integration
- Flexible label template editing
- Adjustable labeling head
- Multiple labeling methods for different products
- IP65/IP66, ISO9001、CE Certificated.
Provide Custom ODM/OEM Automatic Checkweigher with Print and Apply Labeler

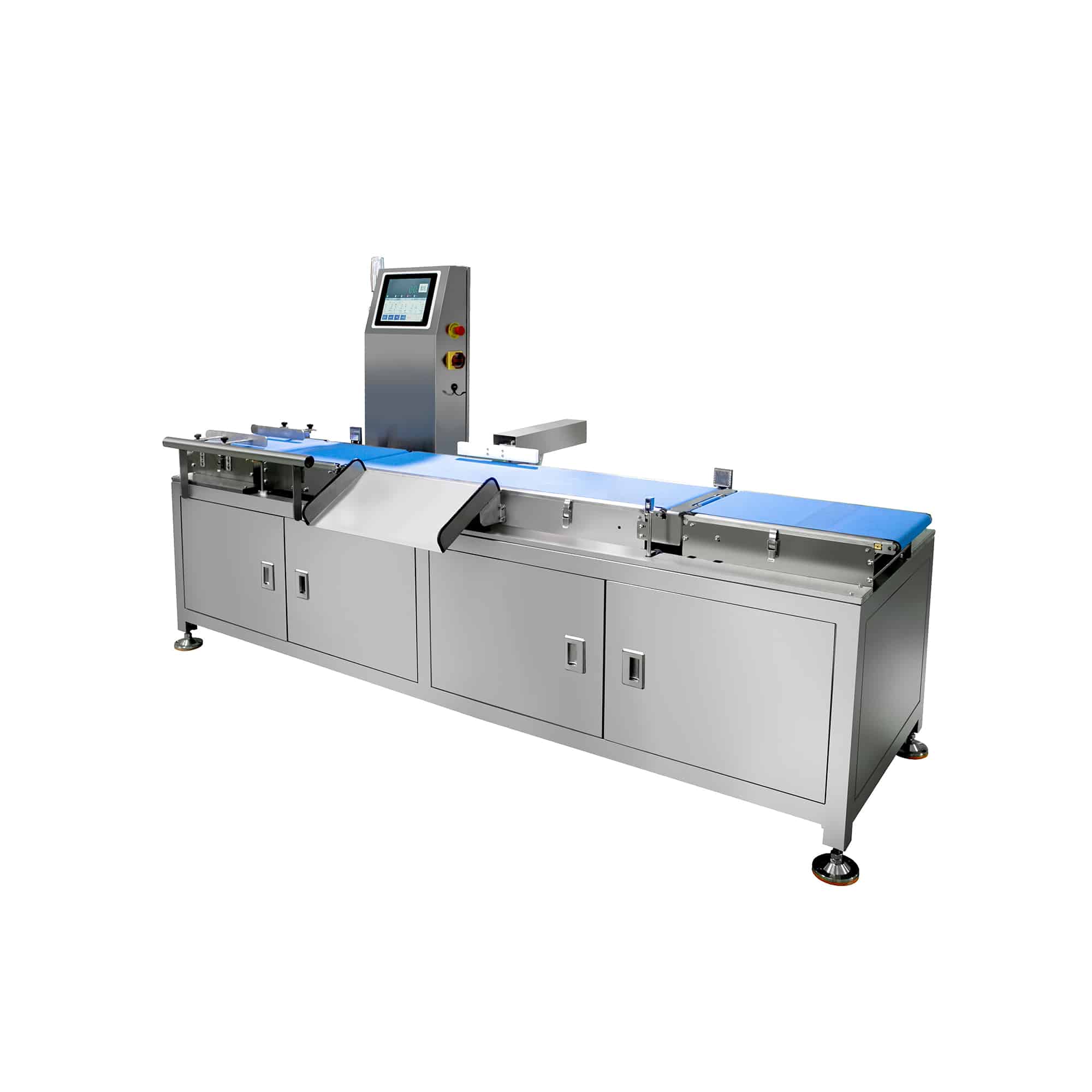

Automatic Checkweigher with Print and Apply Bottom Labeler for Packaged Food Industry
Product Parameters of Automatic Check weigher with Print and Apply Bottom Labeler
| Item | Specification |
|---|---|
| Product Model | SLWPA081 |
| Display Resolution | 0.001 kg |
| Weighing Range | 10 g–50 kg, Customizable |
| Weighing Accuracy | ±0.5–2 g |
| Weighing Section Size | L 500 × W 300 mm, Customizable |
| Suitable Product Size | L ≤300 mm; W ≤300 mm, Customizable |
| Optional Features | Real-Time Printing, Code Reading & Sorting, Online Coding, Online Code Reading, and Online Labeling |
| Stored Product Recipes | 100 |
| Labeling Speed | 15–25 pcs/min, Customizable |
| Labeling Position Accuracy | ±5–10 mm |
| Labeling Method | Pressure-Sensitive Labeling |
| Certificates | ISO9001/CE/IP65/IP66 |
| Power Supply | AC 220 V ±10% |
| Machine Body Material | Stainless Steel 304 |
| Data Export | USB Data Export |
| WorkFlow | Product Feeding → Weighing & Weight Detection → Weight Check → Automatic Rejection → Real-Time Label Printing → Automatic Labeling → Finished Product Output |
Product Video of Automatic Checkweigher for Food Production
Automatic Checkweigher for Food Packaging
Checkweighing system for food
Ready for Overseas Shipment
The food packaging checkweigher has been carefully packed and shipped from our factory in China for overseas delivery.
Frequently Asked Questions of Automatic Food Checkweigher
Q1: What is a food checkweigher?
A food checkweigher is an automatic weighing system designed to check the weight of packaged food products during production. It can detect overweight and underweight products and automatically reject products outside the preset weight range.
Q2: What products can this checkweigher handle?
This checkweigher for packaged food is suitable for ready meals, cooked food, cold meat, vegetables, baked goods, seafood, fruit boxes, food trays, aluminum trays, PP plastic containers, and other packaged food products.
Q3: Can the checkweigher be used for ready meal packaging?
Yes. The system is designed for ready meal packaging and can be integrated into automated production lines for prepared food, including tray-packed meals, aluminum food trays, PP containers, and other ready-to-eat food packages.
Q4: Can it automatically reject overweight and underweight food products?
Yes. The food checkweighing system continuously checks the actual weight of each product. Products outside the preset weight range can be automatically rejected, helping maintain consistent product weight and reduce non-compliant products.
Q5: Can the checkweigher print and apply labels?
Yes. The checkweigher can be integrated with a printer and automatic labeling system. After the product passes weight checking, the actual weight and other product information can be printed in real time and the label can be automatically applied to the product.
Q6: Can it apply labels to the bottom of food trays?
Yes. A bottom labeling system can be integrated for food trays, boxes, and other products with a suitable flat bottom surface. This is suitable for applications where weight, barcode, production date, or other information needs to be printed and applied underneath the package.
Q7: Can this checkweigher be integrated into a food packaging line?
Yes. The checkweigher for food packaging can be connected with upstream and downstream equipment, including filling, sealing, sterilizing, coding, packaging, printing, and labeling equipment. This allows automated production from product processing to final packaging.
Q8: Can the system store different product parameters?
Yes. The system supports multiple product recipes and parameter storage. Operators can quickly select the corresponding product settings when switching between different SKUs, reducing setup time during production.
Q9: Can the checkweigher connect with MES, ERP, or WMS systems?
Yes. The system supports data integration with MES, ERP, and WMS systems, allowing product weight, labeling time, batch information, and other production data to be recorded and transferred for traceability and production management.
Q10: Is this checkweigher suitable for food quality control?
Yes. Food quality control checkweighers are commonly used to verify the weight of packaged products and identify underweight or overweight products during food production and packaging.
Q11: What types of food packaging can be checked?
The system can handle various packaging formats, including square and rectangular food boxes, aluminum trays, PP plastic containers, open food trays, vacuum packaging, and gas-flushed food packaging, provided the product dimensions and bottom surface are suitable for the conveyor and labeling system.
Q11: Can the checkweigher be customized for different food production lines?
Yes. The checkweigher, conveyor, printer, rejector, and labeling unit can be configured according to the product size, weight range, labeling position, production speed, and existing production line. Customized food checkweighing equipment is available for different food packaging applications.
