Automatic Double Side Bottle Labeling Machine
Custom Automatic Double Side sticker Labeling Machine Manufacturers
The Automatic Double Sided Bottle Labeler Machine from Shiny Labeling is designed for precision and efficiency in applying labels to flat or curved surfaced bottles and containers. Built with advanced automation and a durable conveyor system, it delivers consistent accuracy and stability, even in high-speed production environments.
Applications:
This auto double-sided labeling system is widely used in industries where flat-sided bottles are common, including detergents, lubricants, motor oil, daily chemical solutions, and household cleaning products. Its versatile design allows smooth adaptation to different bottle sizes and label formats, making it ideal for both small and large-scale manufacturers.
Key Features：
- High-speed & Precision labeling
- Double-faced Labeling is Available
- Customizable for different products and label sizes
Panasonic PLC Controlled/ Bier Servor Motor Driven
Double Sided Adhesive Labeller Machine
Label Sensor
Label sensor of an automatic double side bottle labeling machine, designed to detect labels accurately and ensure consistent label dispensing and precise label positioning on both sides of the bottle.
Servo Motor
Servo motor of an automatic double side bottle labeling machine, providing precise and stable motion for accurate label positioning and consistent labeling on both sides of the bottle.
HMI With Emergency Stop
HMI control panel of an automatic double side bottle labeling machine, featuring an emergency stop button for convenient machine operation and safety control.
Film Roll Holder
Film roll holder of an automatic double side bottle labeling machine, designed to securely support the labeling material during machine operation.
Clamping Device
Clamping device of an automatic double side bottle labeling machine, designed to hold bottles securely in position during labeling for accurate and consistent label application on both sides.
Divide Wheel
Spacing wheel of an automatic double side bottle labeling machine, designed to separate bottles and maintain consistent spacing for stable and accurate labeling.
Adjustment Mechanism
The height, position and Angle can be precisely adjusted to ensure accurate marking of products of various sizes and shapes.
Electric Cabinet
Electrical cabinet of an automatic double side bottle labeling machine, housing the control system and electrical components for stable and reliable machine operation.
Product Parameters for Automatic Double Sided Labeler Machine
| Parameter | Specification |
|---|---|
| Model | SL8802 |
| Labeling Accuracy | ±0.5 mm |
| Labeling Speed | 40–120 pcs/min with step motor,40-150 pcs/min with servo motor, Customizable |
| Applicable Product Size | L: 20–250 / W: 30–90 / H: 60–280 mm, Customizable |
| Applicable Label Size | L: 20–200 / W: 20–160 mm, Customizable |
| Label Type | Self-Adhesive Pressure-Sensitive Labels |
| Label Roll Inner Diameter | Ø76 mm |
| Max. Label Roll Outer Diameter | Ø300 mm |
| Conveyor Height | 1400 mm |
| Power Supply | AC 220/230V, 50Hz, 1 Phase |
| Power Consumption | 1.2 kW |
| Air Supply | 0.5–0.6 MPa |
| Machine Dimensions (L×W×H) | 2290 × 1400 × 1650 mm, Support customized based on customer's request |
| Machine Weight | 400 kg |
| Machine Materials | SUS304 Stainless Steel / Aluminum Profiles，Support customized in other SUS304 / SS316 / SUS316 Stainless Steel |
| Certificates | CE, ISO 9001 |
| Workflow | Bottles Feeding → Product Detection → Bottles Positioning → Label Dispensing → Label Application → Label Pressing → Final Product Output |
Label Specifications & Requirements for Automatic Double Sided Labeling Machine
| Parameter | Specification |
|---|---|
| Label Supply | Roll-fed |
| Label Gap | 2–3 mm ±0.2 mm |
| Recommended Release Liner | Glassine Paper |
| Release Liner Requirement | The release liner should be free from cuts, scoring, or other damage to ensure smooth label dispensing and reliable labeling operation. |
Case Video of Auto Double Side Bottle Labeler Machine
Applications of Double Sides Labeling Machine

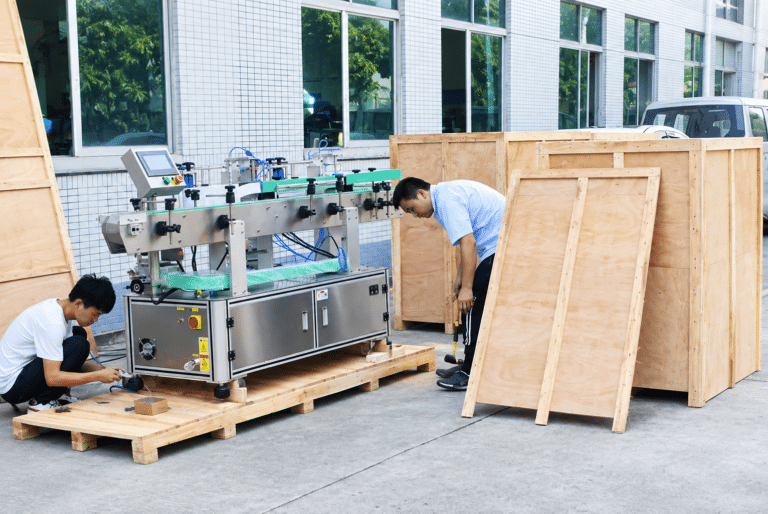

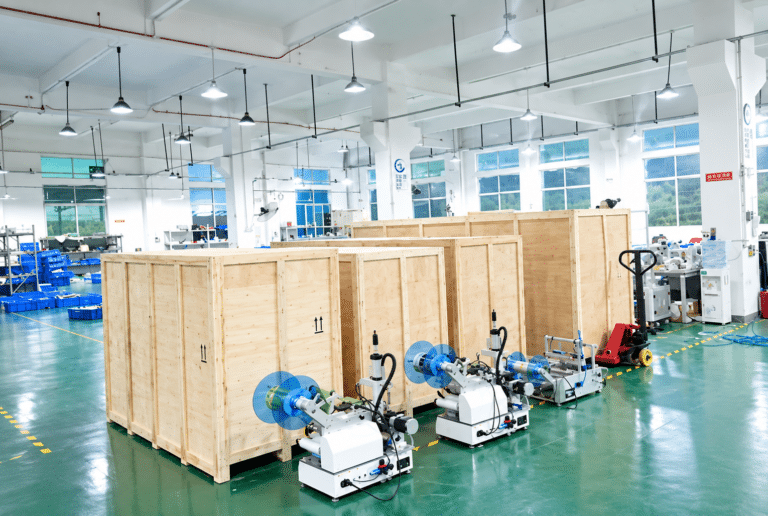

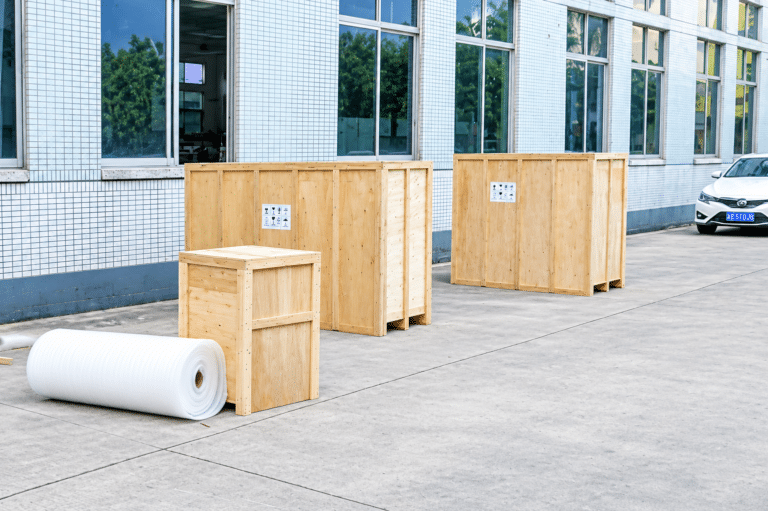

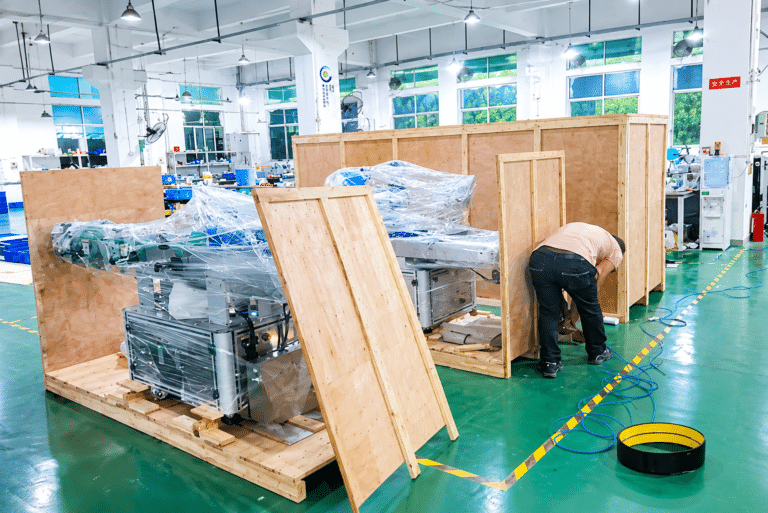

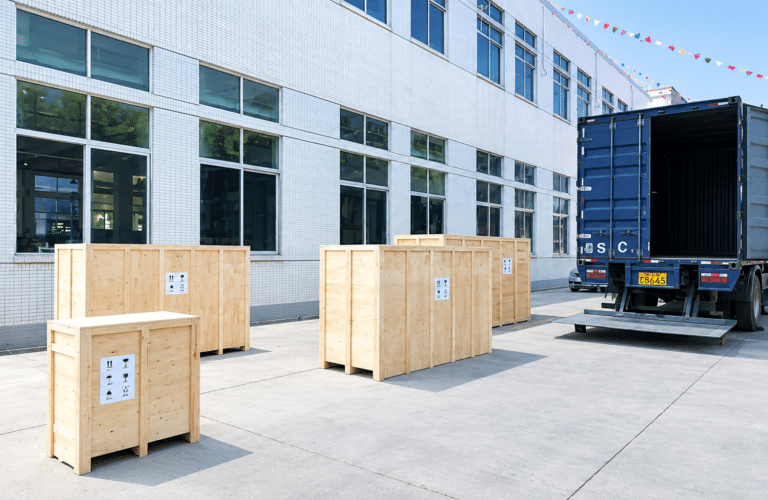

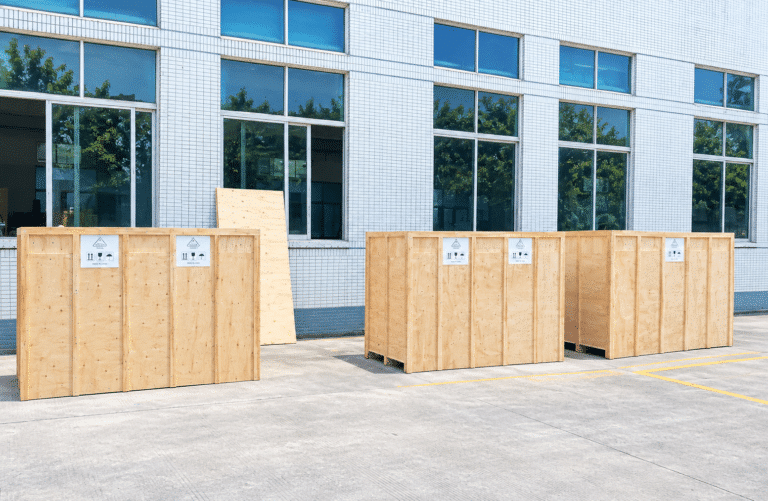

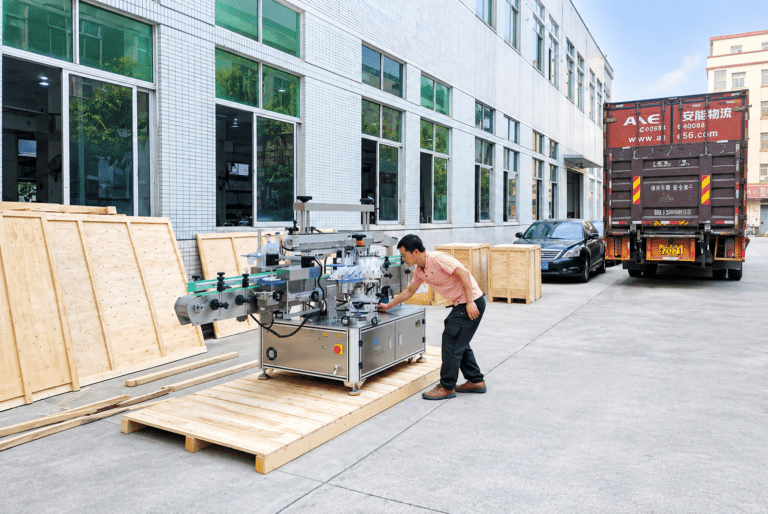

Ready for Overseas Shipment
Frequently Asked Questions for Auto Double Side Labeling System
Q1: What types of labels are supported?
Our machine supports all standard self-adhesive labels in roll form, including paper labels, PET, BOPP, and other film materials.
Q2: Can it handle transparent labels?
Yes, the machine can handle transparent labels. We use a high-sensitivity label sensor specifically designed for transparent or clear labels to ensure accurate detection and positioning.
Q3: What is the max label roll size?
The standard configuration supports a maximum roll outer diameter of 280 mm, with a core diameter of 76 mm (3 inch).
Q4: Does it support different adhesives?
Yes, the machine is compatible with various adhesive types, including permanent, removable, and high-tack adhesives, as long as they are standard self-adhesive labels.
Q5: Can the machine be customized according to our label specifications?
Yes, we can customize the machine according to your label size, material, and application requirements.
Q6: Do you also offer customized adhesive labels?
Yes, we can provide customized labels based on your size, material, and application requirements.
Related Industries of Automatic Double Side Labelling Machine
Food & Beverage Labeling
Labeling on bottles, boxes, plastic tubs, trays, and bags.
Pharmaceutical & Medical Labeling
Applying labels to medication boxes, medical device packaging, and sample kits.
Cosmetics & Personal Care Labeling
Labeling on bottles, jars, boxes, and tubes
Electronics Labeling
Applying labels on product boxes, manuals, and on the devices themselves
Logistics & Package Labeling
Applying shipping labels, barcodes, and address labels to various box sizes.
Hardware Product Labeling
Labeling on containers, cans, and parts boxes.
