Automatic Box Corner Labeling Machine
Custom Automatic Box Corner Labeling Machine Factory
The Automatic Corner Labeling and Sealing Machine is designed to apply sealing labels precisely on the corners of cartons and packaging boxes. It delivers ±1mm labeling accuracy and a stable speed of 40–150 pcs/min, making it ideal for industries that require tamper-proof sealing and high-quality packaging presentation. With advanced automation, it reduces manual labor while ensuring consistent performance for both small and large production lines.
Applications:
Electronics – Tamper-proof labeling for mobile phones, earphones, and consumer electronics packaging.
Pharmaceuticals – Secure sealing of medicine cartons to ensure product safety.
Cosmetics & Personal Care – Neat and professional sealing for beauty and skincare packaging.
Food & Beverages – Protecting product integrity and extending shelf appeal.
Daily Chemicals – Secure packaging for detergents, cleaning supplies, and chemical boxes.
Key Features：
High-speed & Precision labeling
Customizable for different products and label sizes
Durable & Reliable for long term use
Panasonic PLC Controlled/ Bier Servor Motor Driven
Highly Precision Auto Box Corner Labeller Machine

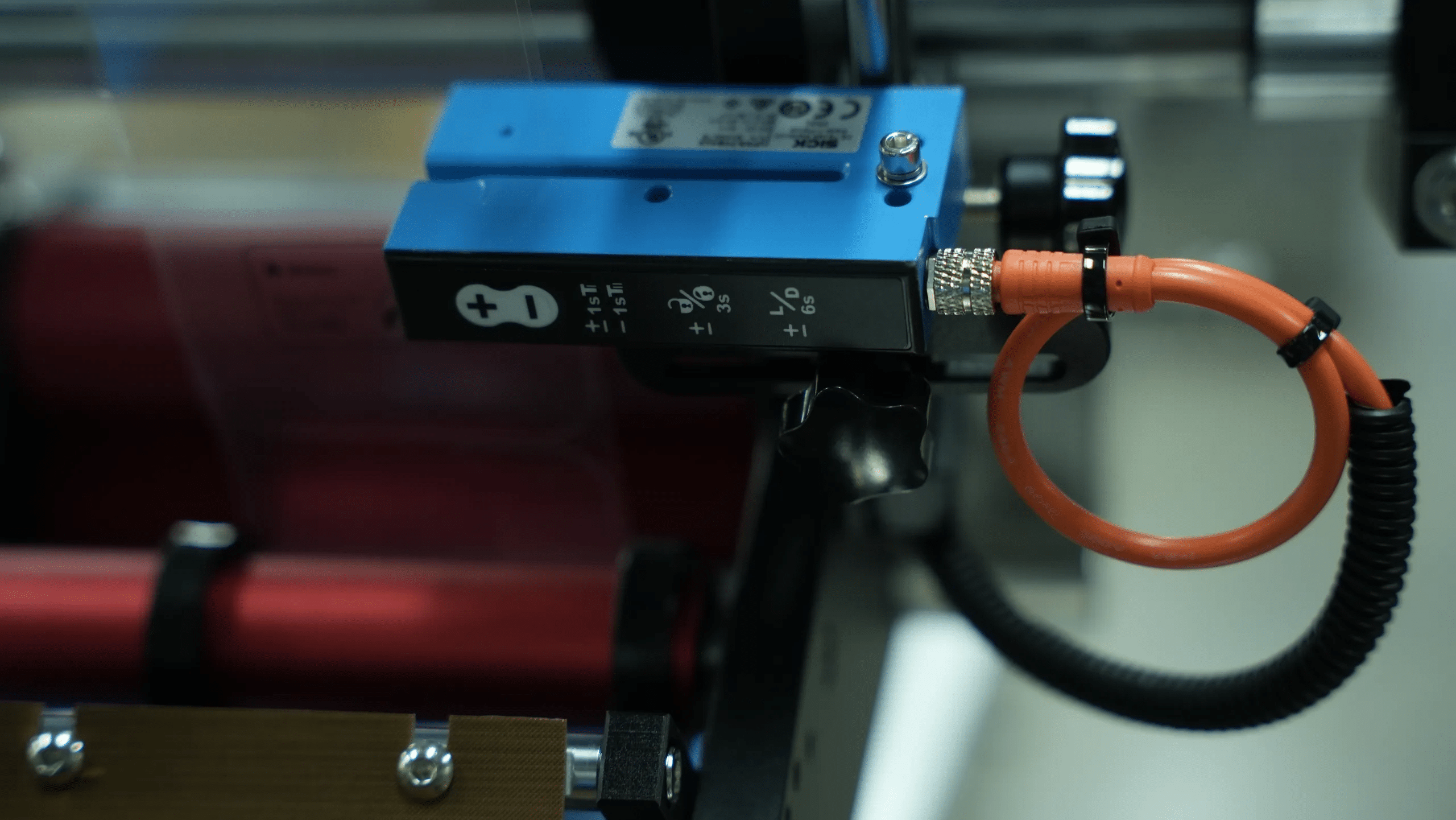

Label Sensor
Label sensor of an auto box corner labeling machine, designed to detect labels accurately and ensure consistent label dispensing and precise label positioning during corner labeling.

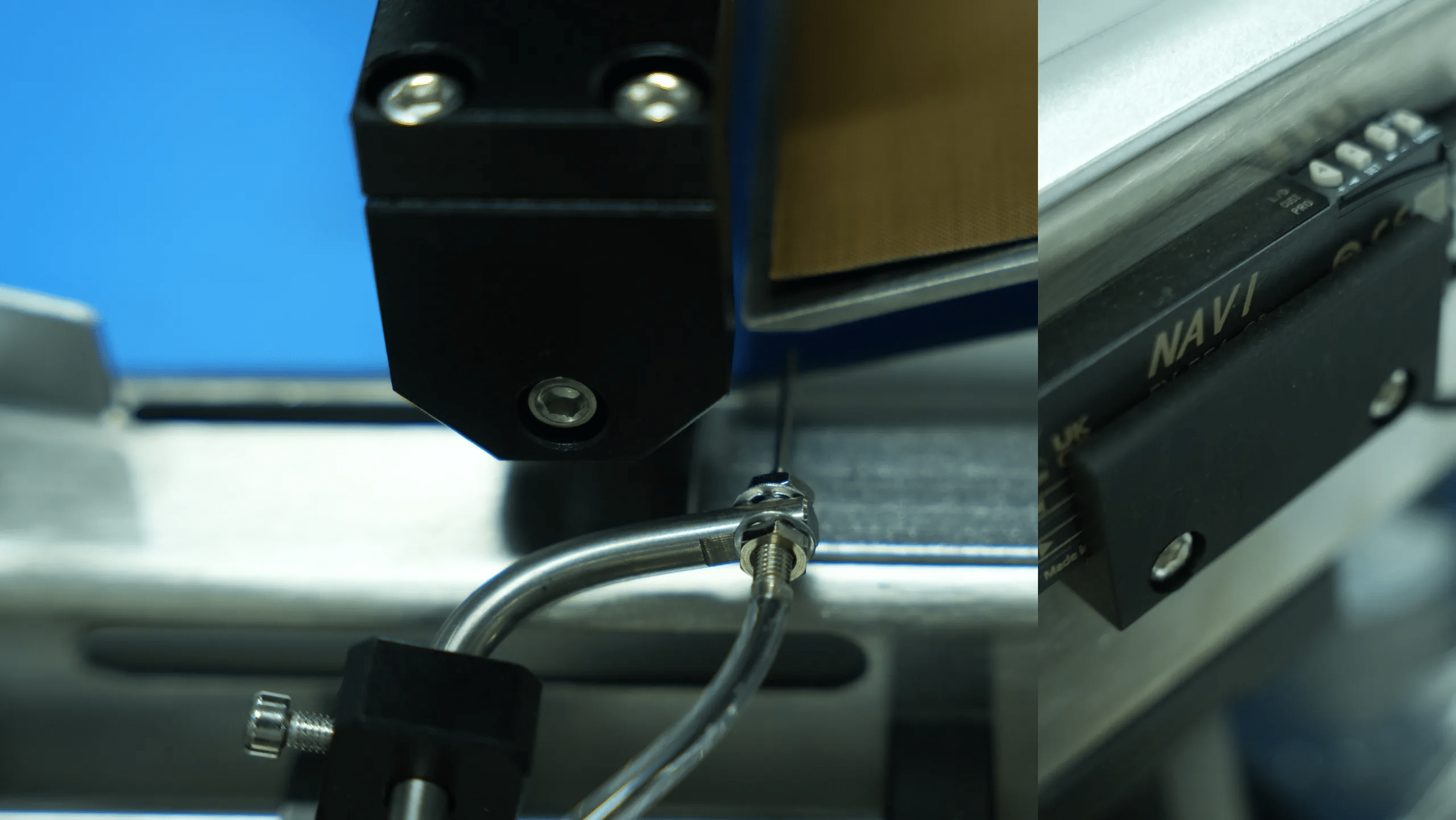

Product Sensor
Product sensor of an auto box corner labeling machine, designed to detect boxes accurately and coordinate product feeding with label dispensing for consistent corner labeling.

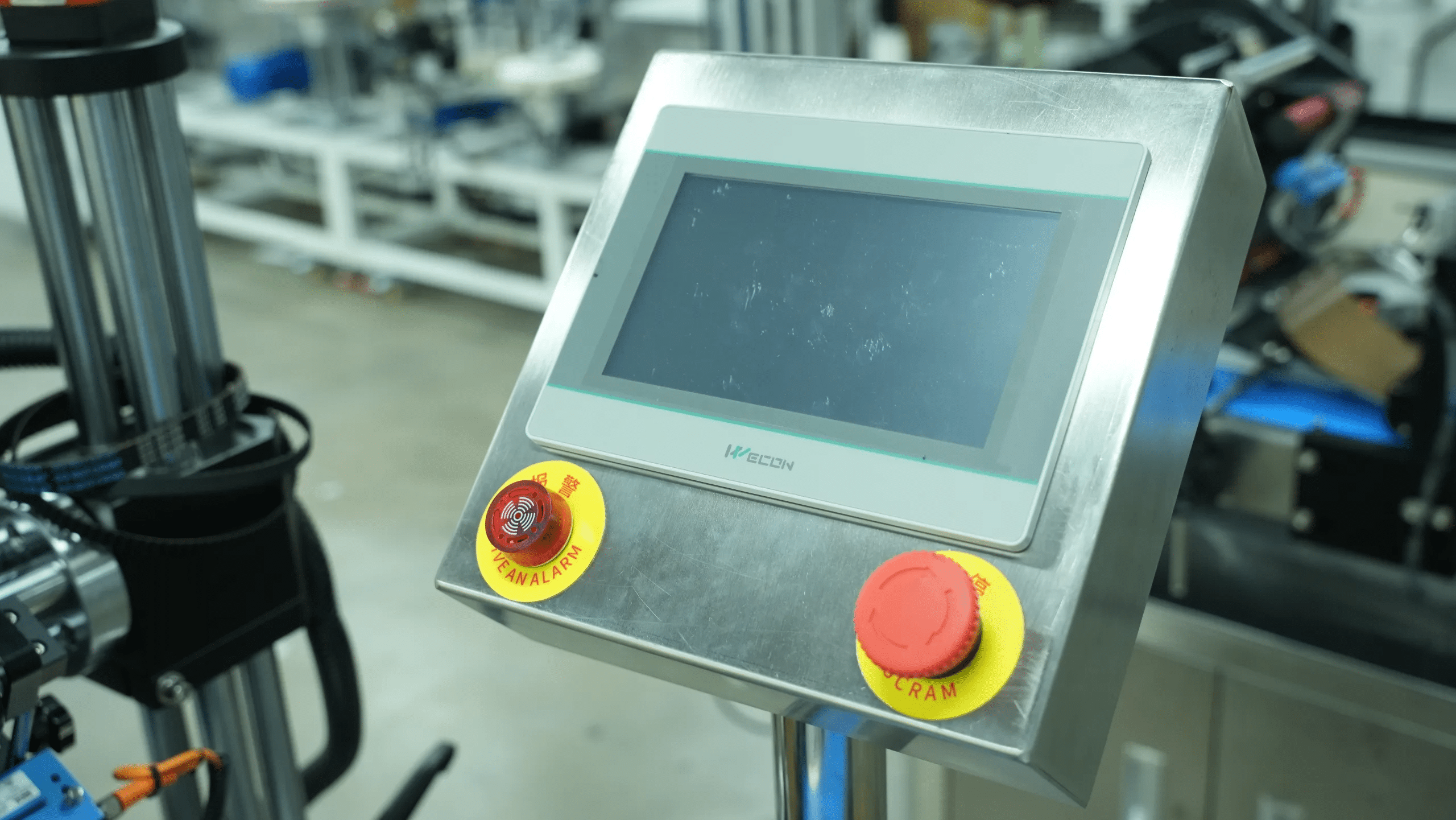

HMI with Emergency Stop
Provide user-friendly interface for Controls settings, monitors performance, and diagnoses issues

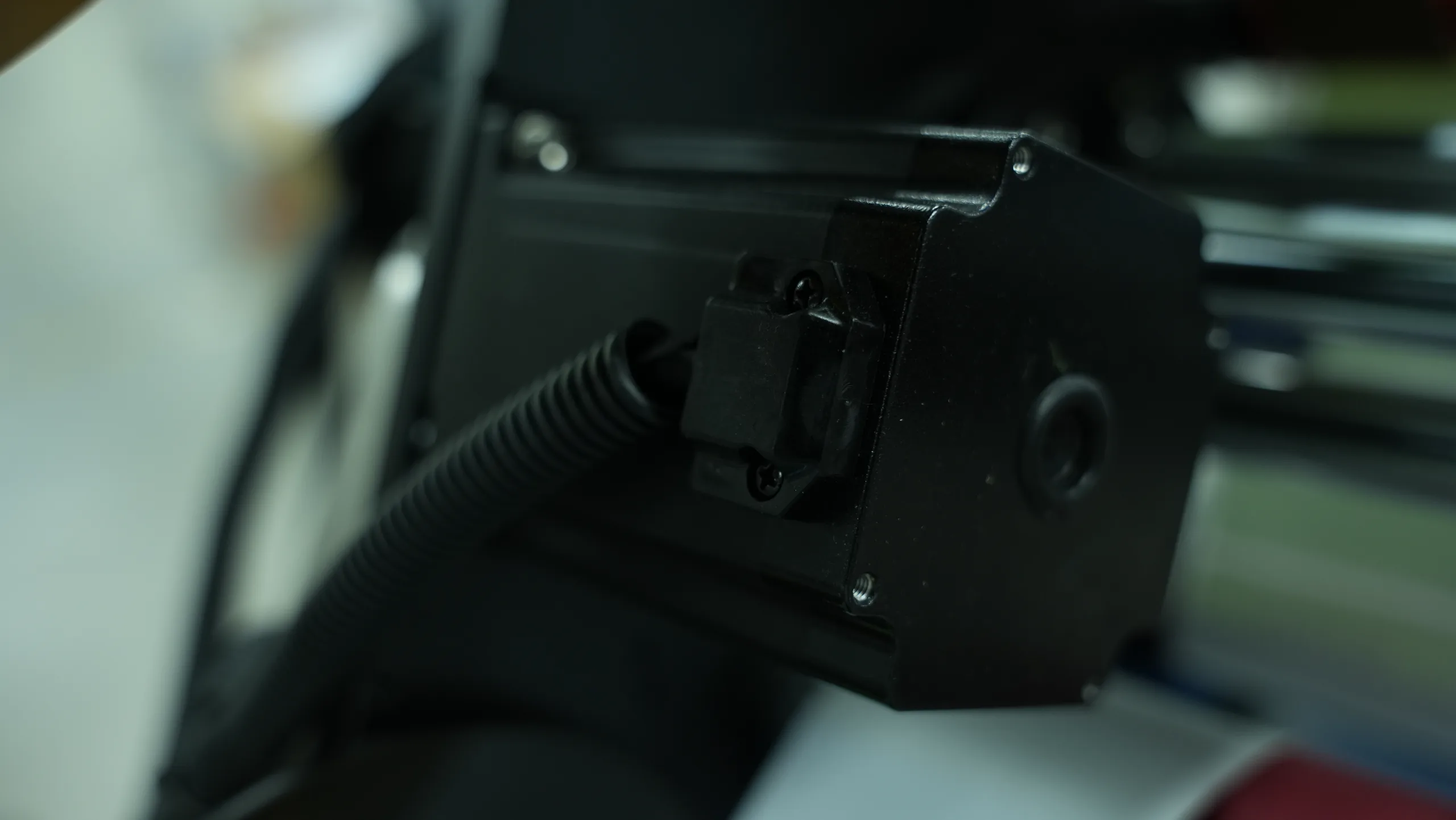

Servo Motor
Servo motor of an auto box corner labeling machine, providing precise and stable motion for accurate label positioning and consistent corner labeling.

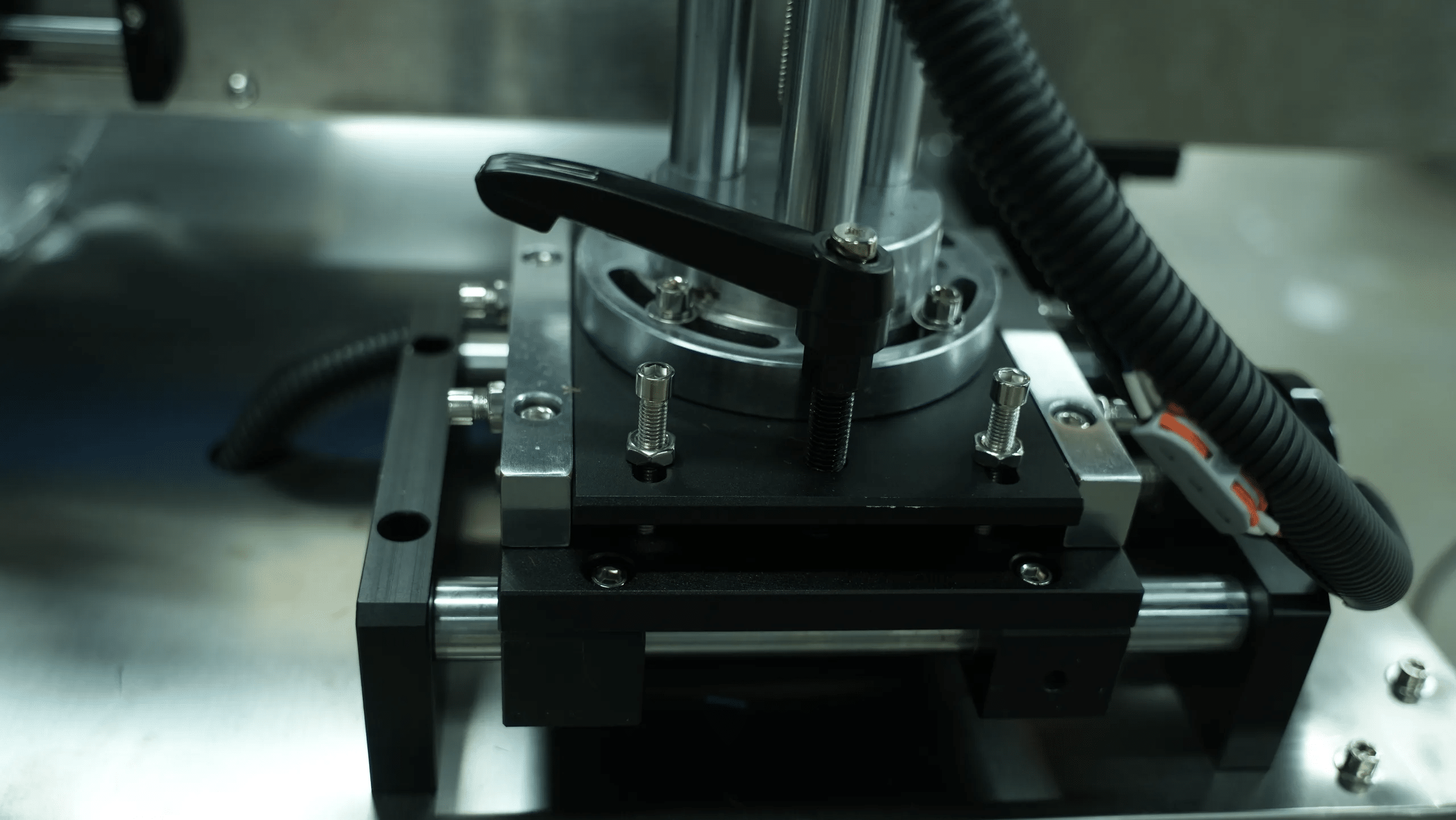

Adjustment Mechanism
Adjustment mechanism of an auto box corner labeling machine, designed to accommodate different box sizes and maintain stable product positioning for accurate and consistent corner labeling.

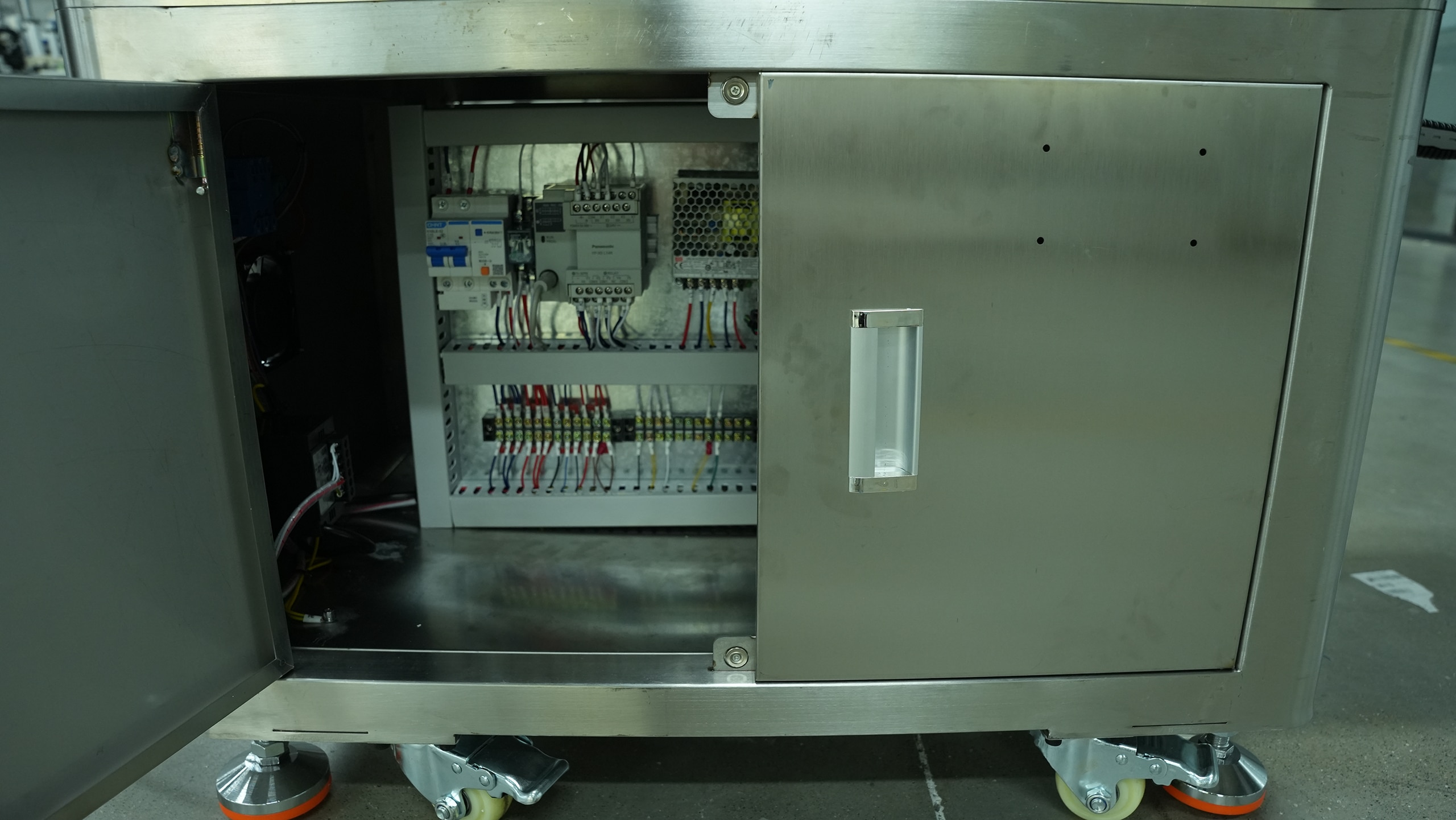

Electric Cabinet
Electrical cabinet of an auto box corner labeling machine, housing the control system and electrical components for stable and reliable machine operation.
Product Parameters for Automatic Box Corner Labeler Machine
| Parameter | Specification |
|---|---|
| Model | SL9802 |
| Labeling Accuracy | ±1 mm |
| Labeling Speed | 30–120 pcs/min, Customizable |
| Applicable Product Size | L: 50–200 / W: 30–200 / H: 50–120 mm, Customizable |
| Applicable Label Size | L: 10–150 / W: 20–100 mm, Customizable |
| Label Type | Self-Adhesive Pressure-Sensitive Labels |
| Label Roll Inner Diameter | Ø76 mm |
| Max. Label Roll Outer Diameter | Ø300 mm |
| Conveyor Height | 1050 ± 50 mm |
| Power Supply | AC 220/230V, 50Hz, 1 Phase |
| Power Consumption | 1.2 kW |
| Air Supply | 0.5–0.6 MPa |
| Machine Dimensions (L×W×H) | 2300 × 1050 × 1460 mm, Support customized based on customer's request |
| Machine Weight | 180 kg |
| Machine Materials | SUS304 Stainless Steel / Aluminum Profiles，Support customized in other SUS304 / SS316 / SUS316 Stainless Steel |
| Certificates | CE, ISO 9001 |
| Workflow | Box Feeding → Product Detection → Box Corner Positioning → Label Dispensing → Label Application → Label Pressing → Final Product Output |
Label Specifications & Requirements for Automatic Box Corner Labeler Machine
| Parameter | Specification |
|---|---|
| Label Supply | Roll-fed |
| Label Gap | 2–3 mm ±0.2 mm |
| Recommended Release Liner | Glassine Paper |
| Release Liner Requirement | The release liner should be free from cuts, scoring, or other damage to ensure smooth label dispensing and reliable labeling operation. |
Case Video of Auto Box Corner Labeling Machine
Applications of Auto Box Corner Label Machine
Ready for Overseas Shipment
Frequently Asked Questions for Automatic Box Corner Labeling System
Q: What types of labels are supported?
Our machine supports all standard self-adhesive labels in roll form, including paper labels, PET, BOPP, and other film materials.
Q: Can it handle transparent labels?
Yes, the machine can handle transparent labels. We use a high-sensitivity label sensor specifically designed for transparent or clear labels to ensure accurate detection and positioning.
Q: What is the max label roll size?
The standard configuration supports a maximum roll outer diameter of 280 mm, with a core diameter of 76 mm (3 inch).
Q: Does it support different adhesives?
Yes, the machine is compatible with various adhesive types, including permanent, removable, and high-tack adhesives, as long as they are standard self-adhesive labels.
Q: Can the machine be customized according to our label specifications?
Yes, we can customize the machine according to your label size, material, and application requirements.
Q: Do you also offer customized adhesive labels?
Yes, we can provide customized labels based on your size, material, and application requirements.
Q: Do you require single-side sealing or double-side corner labeling simultaneously?
Dual-Head Efficiency: We can customize and Equipped with two labeling heads to apply two corner labels simultaneously. For products requiring only one seal, one head can be easily deactivated.
Versatile Labeling Positions: The labeling heads are adjustable to accommodate side-sealing, top-sealing, or side-turn sealing based on your box orientation.
Seamless Integration: Includes an automatic conveyor system. It can operate as a standalone unit or be fully integrated with upstream production lines.
Labor Saving: Can be customized with automatic feeding or receiving devices to further reduce manual labor.
Q: What Applications is the Auto Box Corner Labeling Machine
Consumer Electronics: Mobile phone and tablet packaging seals.
Beauty & Care: Cosmetic set box sealing.
Retail: Playing card boxes, medicine boxes, and bank card kits.
Q: What are the Length, Width, and Height of your boxes?
Our machine supports 50–200mm Length, 30–200mm Width, and 50–150mm Height
Q: What is the label size?
Our machine supports 10–150mm Length and 20–100mm Width
Q: What is your target output per minute?
Our standard range is 30–120 pcs/min
Q: Do you need to print production dates or batch numbers on the label or box during the process?
We can Integrate Coding (Optional): Supports synchronous coding via Ribbon Coder, Inkjet Printer, or Laser Jet Printer to mark production dates and batch codes while labeling.
