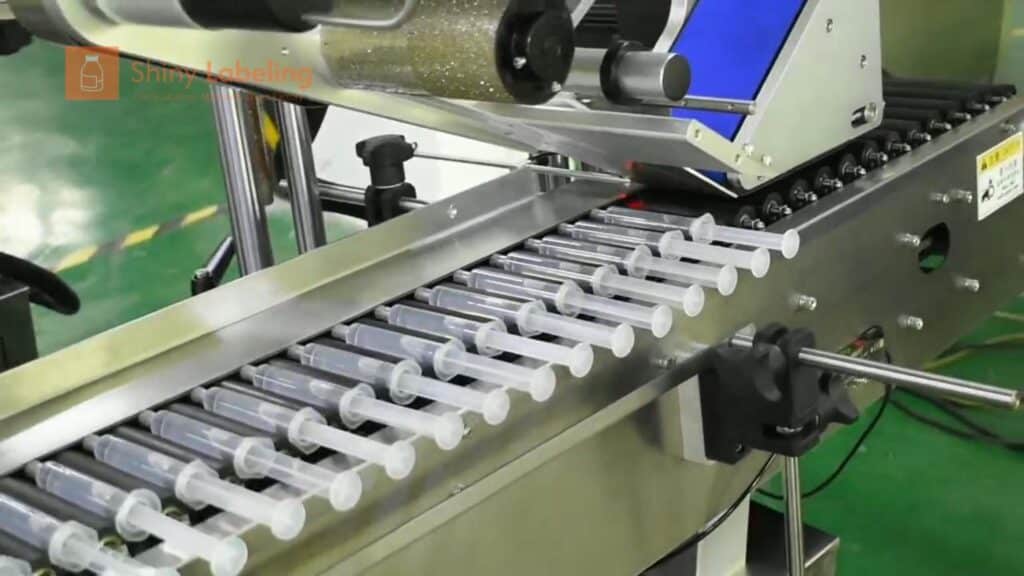

Automatic Syringe Labeling Machine in Operation
This automatic syringe labeling machine applies labels accurately and consistently to syringes at a stable production speed. The system handles automatic feeding, positioning, labeling, and product output for efficient pharmaceutical and medical packaging
What Is a Syringe Labeling Machine?
A 注射器贴标机 is a type of automatic labeling equipment used to apply self-adhesive labels onto syringe surfaces.
A medical syringe generally consists of components such as a barrel, plunger, and tip or needle connection. Medical syringes can be made from plastic or glass and are commonly used with hypodermic needles for injecting or withdrawing fluids.
Source: Wikipedia, Syringe Wikipedia – Syringe.
The labeling machine does not perform the injection process itself. Instead, its function is to automatically position and apply the required label onto the syringe.
This distinction is important:
- Syringe = a medical device used to inject or withdraw fluids
- Injection = the act or process of injecting a substance
- Syringe labeling machine = a machine designed to apply labels to syringes
- Pre-filled syringe labeling machine = a labeling machine designed for pre-filled syringes
Therefore, manufacturers searching for equipment for syringe products will generally use keywords such as 注射器贴标机, automatic syringe labeling machine, or 注射器贴标机 rather than “injection labeling machine.”
Why Is Accurate Syringe Labeling Important?
Syringes used in medical and pharmaceutical applications may require labels containing important product information.
Depending on the product and regulatory requirements, labels may include:
Product name
Drug or formulation information
Dosage information
Batch or lot number
制造信息
Expiration date
Barcode or QR code
Manufacturer information
Other identification information
The label therefore needs to remain properly positioned and securely attached throughout subsequent handling, packaging, transportation, and storage.
For high-volume pharmaceutical production, manual labeling can also create differences in label position and production speed. An automated system helps standardize the labeling process.
How Does an Automatic Syringe Labeling Machine Work?
The working principle of the syringe labeling machine is relatively straightforward.
A typical automatic system can include the following steps:
Syringe Feeding → Product Separation → Positioning → Label Detection → Label Dispensing → Label Application → Inspection → Product Output
1. Automatic Syringe Feeding
Syringes are automatically supplied to the labeling system through a feeding mechanism.
The feeding system can be customized according to the syringe size, production speed, and upstream packaging equipment.
2. Product Separation
The machine separates individual syringes so that they enter the labeling station at a controlled distance.
This helps prevent two syringes from entering the labeling position simultaneously.
3. Syringe Positioning
Accurate positioning is particularly important for medical products.
The machine can use sensors and mechanical positioning components to determine the syringe position before label application.
4. Label Detection
A label sensor detects the label position on the backing paper and sends a signal to the control system.
The system then controls the dispensing speed according to the product movement.
5. Label Dispensing
The label is separated from the backing material and dispensed toward the syringe.
For cylindrical products, the machine can use a suitable labeling mechanism to achieve accurate label placement.
6. Label Application
A wrapping, pressing, rolling, or other application mechanism applies the label to the syringe surface.
For applications requiring labels around the syringe barrel, a wraparound labeling machine for syringes can be configured.
7. Inspection and Output
Depending on the configuration, an inspection system can check label presence, position, barcode, or other characteristics before the finished syringe leaves the machine.
Key Features of a Syringe Labeling Machine
The exact syringe labeling machine features depend on the syringe design and production requirements.
Common features include:
High-Precision Labeling
A high precision syringe labeling machine is designed to maintain consistent label positioning during continuous production.
This is especially useful when the label must be positioned within a specific area of the syringe barrel.
Automatic Product Positioning
Automatic positioning helps maintain consistent labeling results between individual syringes.
Adjustable Labeling Parameters
Operators can adjust parameters such as:
Labeling speed
Product spacing
标签位置
Label length
Conveyor speed
Acceleration and deceleration
Touchscreen Control
A PLC and touchscreen interface can make it easier for operators to set and monitor machine parameters.
Production Line Integration
The machine can also be integrated with other pharmaceutical packaging equipment, such as:
Feeding → Filling → Capping → Labeling → Inspection → Packaging
This is particularly useful for pharmaceutical manufacturers looking for a complete automated packaging solution.
Pre-Filled Syringe Labeling Machine
A 预充式注射器贴标机 is designed specifically for syringes that have already been filled with pharmaceutical products.
Pre-filled syringes are designed to contain a measured dose of medication and can be used in certain injection devices. For example, Wikipedia notes that many autoinjectors use disposable prefilled syringes.
Source: Wikipedia, Autoinjector Wikipedia – Autoinjector.
Because pre-filled syringes already contain the product, the labeling process needs to consider:
Product stability
Syringe orientation
Label positioning
Surface condition
Label adhesion
生产速度
Handling requirements
The machine configuration should therefore be selected according to the actual syringe design and production process.
Syringes Sticker Labeling Machine
A syringes sticker labeling machine is another commonly used search term for equipment that applies self-adhesive labels to syringes.
In industrial applications, the more natural technical term is usually syringe labeling machine or automatic syringe labeling machine.
The label can be designed according to the required information and available labeling area.
For example, a syringe may require a relatively narrow label around the barrel. In this case, the labeling system needs to accurately control both the label dispensing position and the syringe movement.
Wraparound Labeling Machine for Syringes
A wraparound labeling machine for syringes applies a label around part or all of the cylindrical syringe barrel.
This configuration can be suitable when the product requires a label covering a larger portion of the circumference.
The exact labeling method depends on:
Syringe diameter
Syringe material
标签尺寸
Label adhesive
Required overlap
Labeling speed
标签位置
For this reason, manufacturers should normally test the actual syringe and label samples before finalizing the machine configuration.
Advantages of a Syringe Labeling Machine
There are several potential syringe labeling machine benefits for pharmaceutical and medical manufacturers.
1. Consistent Label Position
Automatic positioning can reduce variations in label placement during continuous production.
2. Improved Production Efficiency
Automatic labeling can significantly reduce the amount of manual work required for high-volume production.
3. Better Production Consistency
Once the machine parameters are properly configured, the same labeling process can be repeated for large production batches.
4. Reduced Manual Handling
Automation can reduce repetitive manual labeling operations and allow operators to focus on machine monitoring and quality control.
5. Easy Integration
An automatic syringe labeling machine can be integrated with upstream and downstream pharmaceutical packaging equipment.
Syringe Labeling Machine Requirements for Labeling
Before purchasing a machine, manufacturers should provide detailed product information.
Important syringe labeling machine requirements for labeling include:
| Requirement | Information Needed |
|---|---|
| Syringe type | Plastic / Glass |
| Syringe diameter | mm |
| Syringe length | mm |
| Label width | mm |
| Label length | mm |
| Label material | Paper / Synthetic / Other |
| 标签位置 | Barrel / Specific area |
| Labeling method | Wraparound / Partial wrap |
| 生产速度 | Syringes/min |
| 产品进料 | Manual / Automatic |
| Inspection | Required / Not required |
| 条形码 | Required / Not required |
Providing these details allows the syringe labeling machine manufacturer to recommend a more suitable configuration.
How to Choose a Syringe Labeling Machine Supplier
When choosing a syringe labeling machine supplier, price should not be the only consideration.
Manufacturers should also evaluate:
Machine Accuracy
Ask about the expected labeling accuracy and repeatability under actual production conditions.
Product Compatibility
Confirm that the machine can handle the syringe diameter, length, material, and label dimensions.
Production Speed
The machine’s rated speed should match the actual production requirements rather than simply choosing the highest theoretical speed.
Automation Level
Consider whether the machine should include:
Automatic feeding
Automatic positioning
Automatic labeling
Label detection
Product inspection
Rejection system
Automatic counting
After-Sales Support
Technical support, spare parts, installation, commissioning, and operator training can be important for long-term machine operation.
Syringe Labeling Machine Maintenance Procedures
Regular syringe labeling machine maintenance procedures can help maintain stable machine performance.
Common maintenance tasks include:
Cleaning the label sensor
Cleaning product-contact surfaces
Checking conveyor belts
Checking rollers and pressing mechanisms
Checking sensor alignment
Inspecting label dispensing components
Checking electrical connections
Lubricating applicable mechanical components
Checking abnormal vibration or noise
Inspecting worn parts
The actual maintenance schedule should follow the machine manufacturer’s instructions and the operating environment.
Syringe Labeling Machine Precautions
Operators should also follow appropriate syringe labeling machine precautions.
Before operating the equipment:
Check whether the machine is correctly installed.
Confirm that the syringe dimensions match the machine settings.
Check label material and label dimensions.
Make sure sensors are correctly positioned.
Confirm emergency-stop functions.
Run a test batch before full production.
Check label position and adhesion.
Follow applicable pharmaceutical and medical-device production procedures.
For medical applications, the labeling machine itself is only one part of the overall manufacturing and quality-control system. Product-specific regulatory, validation, cleanliness, and packaging requirements should be evaluated separately.
Tips for Using a Syringe Labeling Machine
Here are several practical tips for using a syringe labeling machine:
Tip 1: Test the actual syringe
Do not rely only on drawings or dimensions. Physical syringe samples should be tested whenever possible.
Tip 2: Test the actual label
Different label materials and adhesives can behave differently during high-speed application.
Tip 3: Start at a lower speed
During commissioning, start with a lower speed and gradually increase production speed after confirming labeling quality.
Tip 4: Check label position regularly
Even with automatic equipment, operators should periodically inspect the labeling result.
Tip 5: Keep sensors clean
Dust, adhesive residue, and other contaminants can affect sensor performance.
China Syringe Labeling Machine Manufacturer
For companies searching for a China syringe labeling machine, China has a large manufacturing base for industrial automation and packaging machinery.
When evaluating a syringe labeling machine factory or syringe labeling machine manufacturer, buyers should look beyond the machine price and compare:
Machine construction
Automation level
Labeling accuracy
生产速度
Product compatibility
Electrical configuration
Safety features
Installation support
Spare parts availability
After-sales service
Customization capability
A syringe labeling machine for sale may be suitable for standard applications, while customized equipment can be considered when the syringe dimensions, label position, production speed, or upstream/downstream process is unusual.
